HSP-CAT6A-EXT-UUTP-FCA-BLACK-305

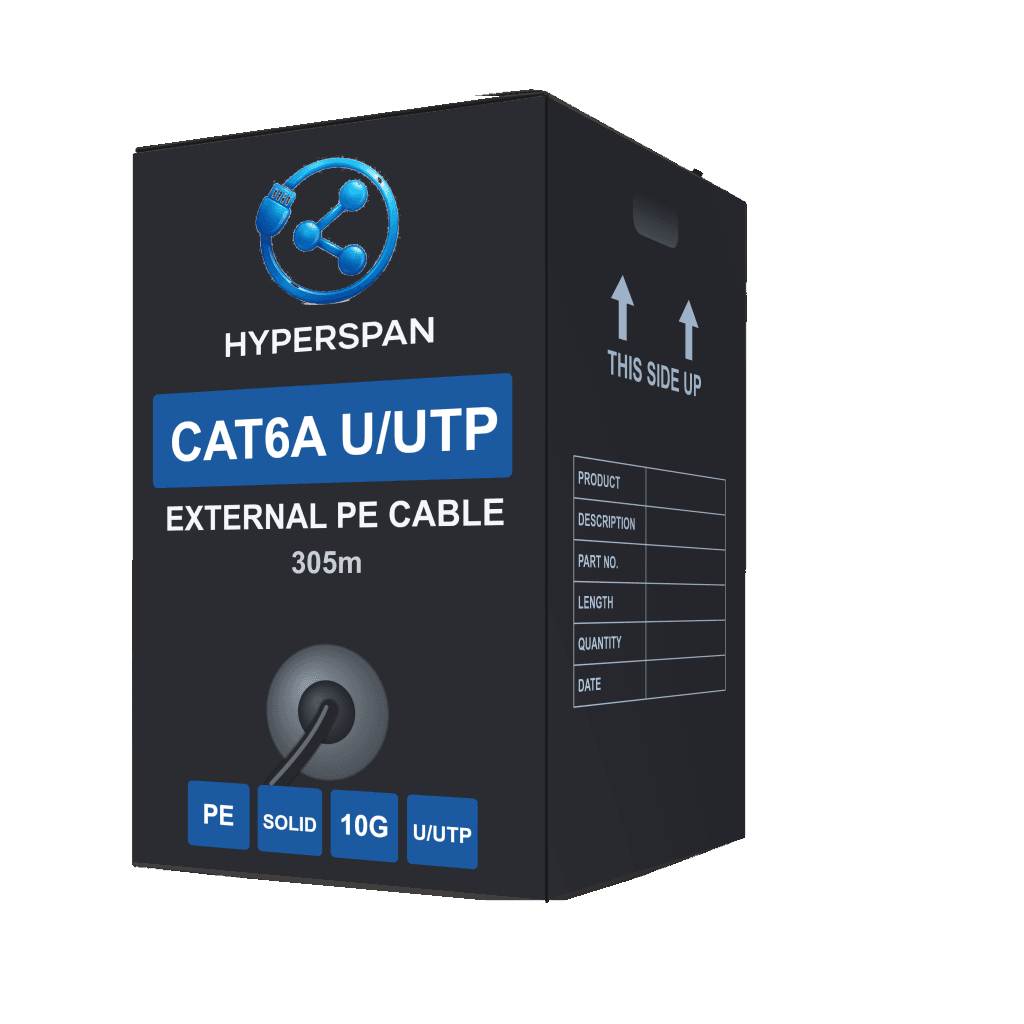

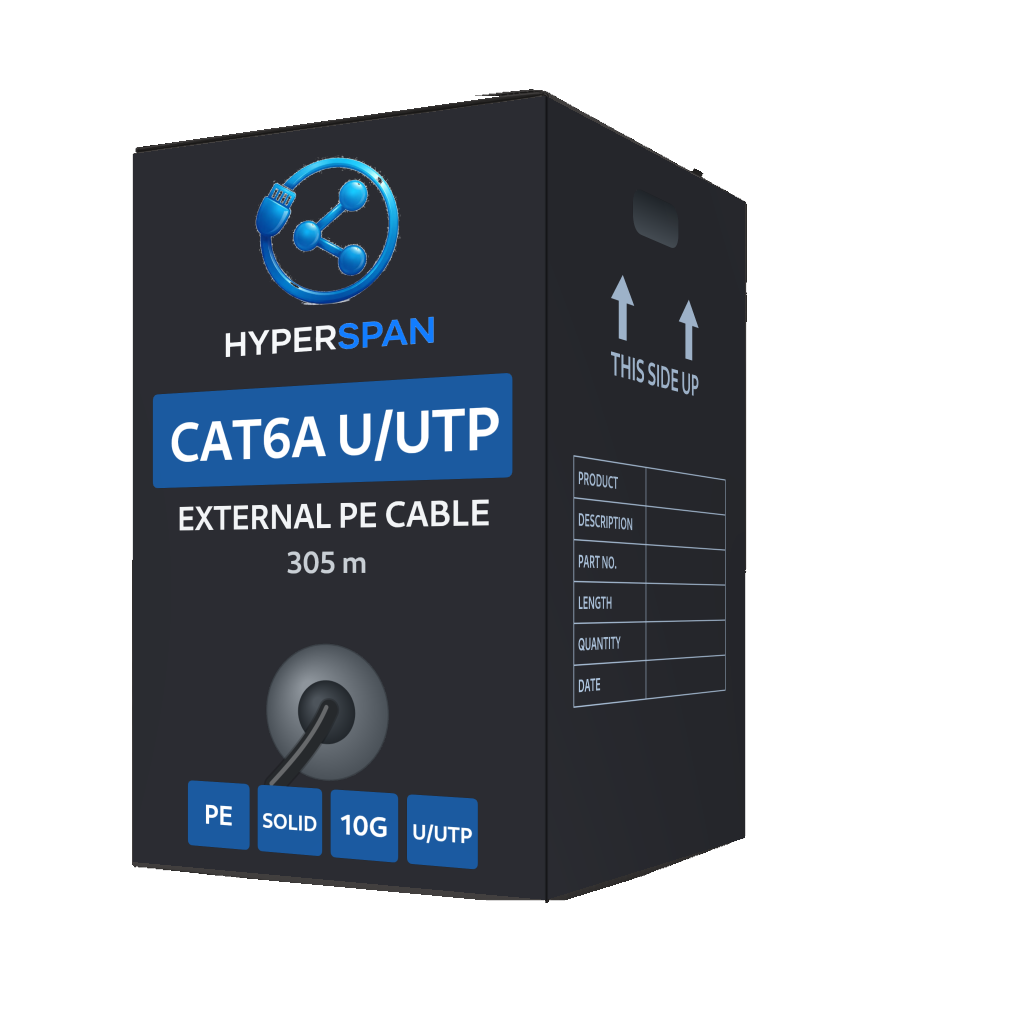

Hyperspan Core™ Cat6A U/UTP PE Fca 305 m Box Black
Hyperspan Core™ Cat6A solid copper bulk cable. Cable type U/UTP, 23 AWG Class 1 solid conductor, PE outer sheath (Black). Declared reaction-to-fire Fca under EN 13501-6 / EN 50575. Supplied as 305 m Box. Confirm certified documentation with Hyperspan Technical Support.
- Category
- Cat6A
- Cable type
- U/UTP
- Overall screening
- None
- Conductor material
- Solid bare copper
- Conductor surface
- Bare
- AWG size
- 23
- Conductor category
- Class 1 = solid
- Total number of cores
- 8
- Outer sheath material
- PE
- Outer sheath colour
- Black
- Reaction to fire (EN 13501-6)
- Fca
- CPR euroclass
- Fca
- Smoke production
- NPD
- Flaming droplets / particles
- NPD
- Acidity / corrosivity
- NPD
- Packaging
- 305 m Box
- Application
- Outdoor Infrastructure
- Warranty
- 25-Year System Warranty
Fire / CPR classification
Fca
Smoke NPD · Droplets NPD · Acidity NPD
Saved to your BOM on this device. Partner login to keep it as your order basket and export a PDF.
Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
