Hyperspan Rack™
Rack™ Copper Patch Panels
Professional Rack Infrastructure for Structured Cabling Systems

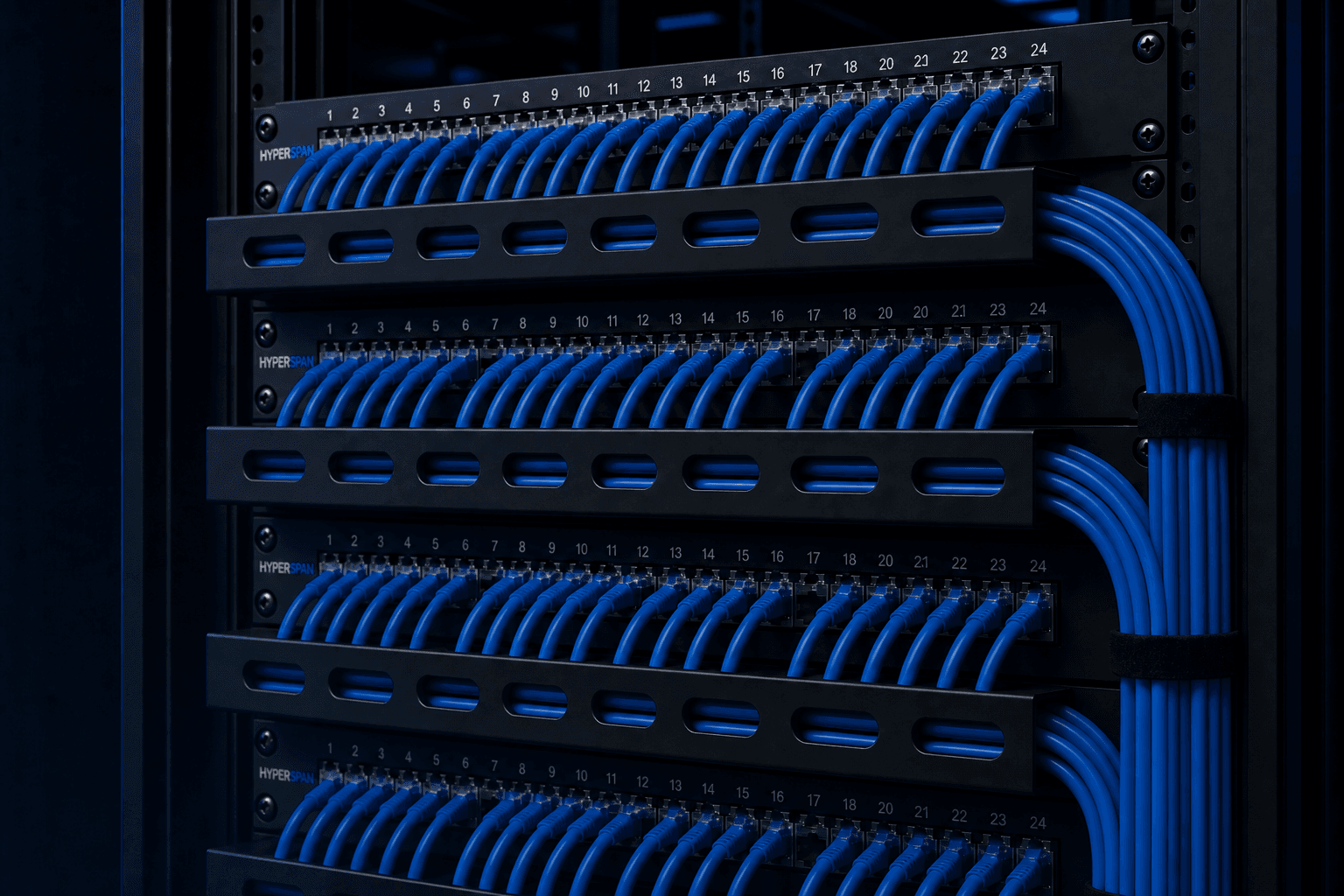

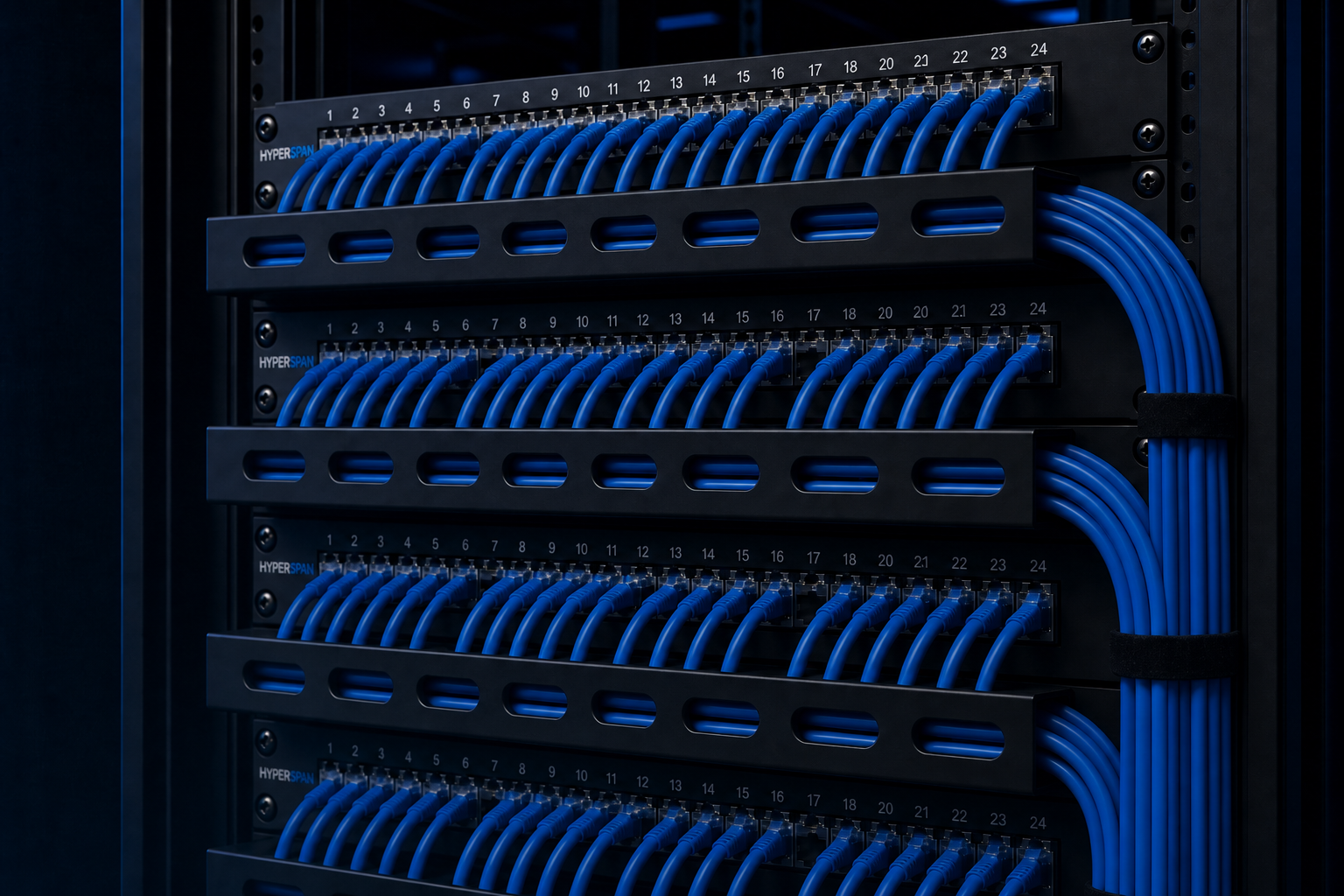

Hyperspan Rack™ patch panels provide the central connection point for organised, reliable and scalable structured cabling — engineered to complement the complete Hyperspan copper ecosystem across Core™, Connect™, XR™, Terminate™ and Manage™.
Why choose
Built for real-world specification
Factory Loaded Options
Pre-installed RJ45 modules for faster deployment and consistent assembly.
Modular Unloaded Panels
Populate with Terminate™ keystone jacks for flexible, future-ready installs.
High-Density Design
24-port 1U and 48-port options, including high-density 48-port in 1U.
Shielded & Unshielded
Options for standard and high-EMI environments.
Professional Finish
Numbered ports, powder-coated steel and rear management compatibility.
25-Year System Warranty
Supported within compliant Hyperspan system installations.
Product family
Products in this range
Browse 14 products with dedicated detail pages, technical datasheets. Use Add to BOM on each product page when signed in.
Loading products…
Selection guide
Choosing the right product
Match the installation environment and performance target to the correct XR construction and CPR class.
| Project requirement | Recommended product |
|---|---|
| Fast deployment / consistent factory load | Loaded Rack™ panel |
| Mixed-category or expandable rack | Unloaded Keystone panel |
| Shielded Cat6 / Cat6A system | Shielded loaded or shielded keystone panel |
| Maximum ports per 1U | High-Density Keystone 48-port 1U |
| Enterprise / data centre cabinet | 24 or 48 port Rack™ panel + Manage™ |
Channel
Ordering guide
SKUs and variants
Confirm final availability and datasheets with Hyperspan Technical Support for live projects.
| Product Code | Description | Category | Format | Ports | Height | Colour |
|---|---|---|---|---|---|---|
| HSP-RACK-C5E-24-L | Cat5e Loaded Patch Panel | Cat5e | Loaded | 24 | 1U | Black |
| HSP-RACK-C5E-48-L | Cat5e Loaded Patch Panel | Cat5e | Loaded | 48 | 2U | Black |
| HSP-RACK-C6-24-L | Cat6 Loaded Patch Panel | Cat6 | Loaded | 24 | 1U | Black |
| HSP-RACK-C6-48-L | Cat6 Loaded Patch Panel | Cat6 | Loaded | 48 | 2U | Black |
| HSP-RACK-C6A-24-L | Cat6A Loaded Patch Panel | Cat6A | Loaded | 24 | 1U | Black |
| HSP-RACK-C6A-48-L | Cat6A Loaded Patch Panel | Cat6A | Loaded | 48 | 2U | Black |
| HSP-RACK-SH-C6-24-L | Shielded Cat6 Loaded Patch Panel | Cat6 | Shielded Loaded | 24 | 1U | Black |
| HSP-RACK-SH-C6A-24-L | Shielded Cat6A Loaded Patch Panel | Cat6A | Shielded Loaded | 24 | 1U | Black |
| HSP-RACK-UKP-24 | Unloaded Keystone Patch Panel | Cat5e–Cat7A | Unloaded | 24 | 1U | Black |
| HSP-RACK-UKP-48 | Unloaded Keystone Patch Panel | Cat5e–Cat7A | Unloaded | 48 | 2U | Black |
| HSP-RACK-SH-UKP-24 | Shielded Keystone Patch Panel | Cat5e–Cat7A | Unloaded Shielded | 24 | 1U | Black |
| HSP-RACK-SH-UKP-48 | Shielded Keystone Patch Panel | Cat5e–Cat7A | Unloaded Shielded | 48 | 2U | Black |
| HSP-RACK-HDP-24 | High-Density Keystone Patch Panel | Cat6A–Cat7A | Unloaded | 24 | 1U | Black |
| HSP-RACK-HDP-48 | High-Density Keystone Patch Panel | Cat6A–Cat7A | Unloaded | 48 | 1U | Black |
Range at a glance
Key specifications
- Product Family
- Hyperspan Rack™ Patch Panels
- Categories
- Cat5e, Cat6, Cat6A & Cat7A
- Configurations
- Loaded & Unloaded
- Port Options
- 24 Port • 48 Port
- Mounting
- Standard 19-inch Rack
- Versions
- Shielded & Unshielded
- Colour
- Black; other finishes on request
- Compatibility
- Core™, Connect™, XR™, Terminate™ & Manage™
Technical highlights
Typical applications
* Populate unloaded panels with compatible Hyperspan Terminate™ keystone jacks.
* High-density 48-port keystone panel fits in 1U of rack space.
* Confirm final SKU availability with Hyperspan sales for live projects.
Need this range for a live project?
Share your layout, device type and longest runs and we’ll help map the correct SKUs and constructions.
