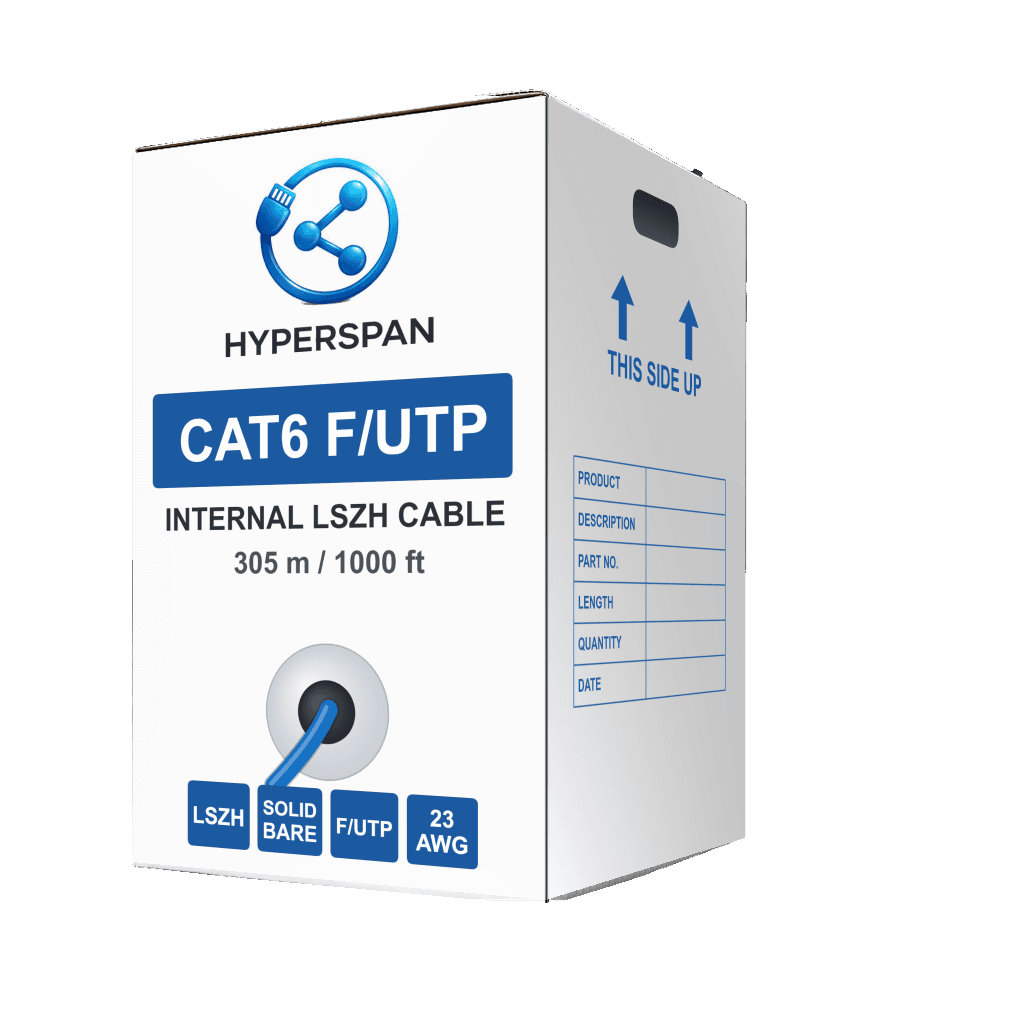

Product photography matches the Hyperspan catalogue visual language — studio drum / panel imagery aligned to this SKU's category, construction and format.
HSP-CAT6-INT-FUTP-DCA-BLUE-305
Hyperspan Core™ Cat6 F/UTP LSZH Dca-s1,d1,a1 305 m Box Blue
Hyperspan Core™ Cat6 solid copper bulk cable. Cable type F/UTP with X filler, 23 AWG Class 1 solid conductor, LSZH outer sheath (Blue). Declared reaction-to-fire Dca-s1,d1,a1 under EN 13501-6 / EN 50575. Supplied as 305 m Box. Confirm certified documentation with Hyperspan Technical Support.
- Category
- Cat6
- Cable type
- F/UTP
- Pair separator
- X filler (cross separator)
- Overall screening
- Aluminium foil
- Conductor material
- Solid bare copper
- Conductor surface
- Bare
- AWG size
- 23
- Conductor category
- Class 1 = solid
- Total number of cores
- 8
- Outer sheath material
- LSZH
- Outer sheath colour
- Blue
- Reaction to fire (EN 13501-6)
- Dca-s1,d1,a1
- CPR euroclass
- Dca
- Smoke production
- s1
- Flaming droplets / particles
- d1
- Acidity / corrosivity
- a1
- Packaging
- 305 m Box
- Application
- General Commercial
- Warranty
- 25-Year System Warranty
Fire / CPR classification
Dca-s1,d1,a1
Smoke s1 · Droplets d1 · Acidity a1
Saved to your BOM on this device. Partner login to keep it as your order basket and export a PDF.
Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
