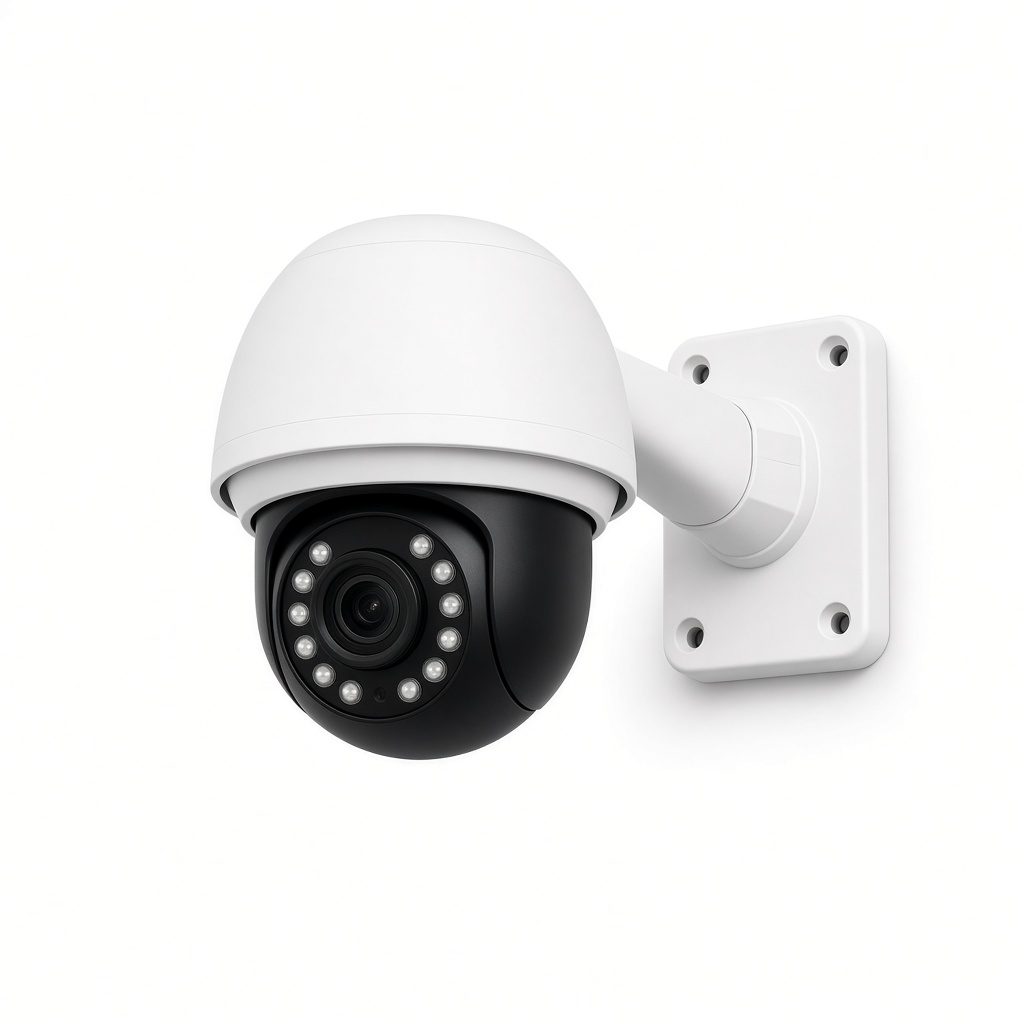

Low front angle

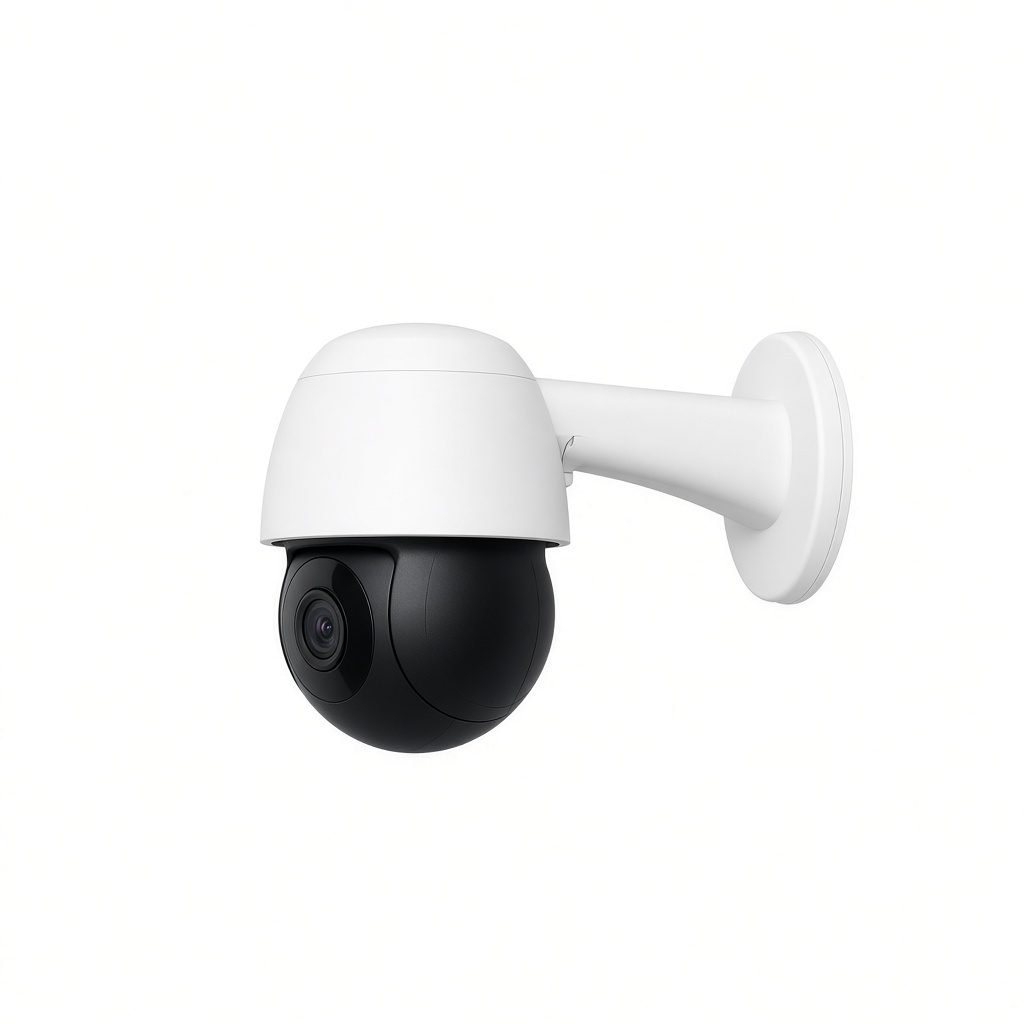

Studio reference of this form. Photographs show the product from more than one angle. They are not a measured engineering drawing, and they do not add specifications beyond the table.
HS-VX-PTZ32-4MP
VX 4 MP 32x Outdoor PTZ
The long-zoom outdoor camera. Thirty-two times optical zoom, endless pan and 180 degrees of tilt put one speed-dome over a perimeter, a car park or a gate line, with 120 dB wide dynamic range, image stabilisation and two-way audio on PoE+.
Key features
- 4 megapixel, 2688 x 1520
- 32x optical zoom, 4.5–144 mm
- 360 degree pan, 180 degree tilt, 128 presets
- Human tracking
- Infrared to 150 m
- 120 dB wide dynamic range
- Electronic image stabilisation
- Two-way audio
- IP66 and IK10
- PoE+ for 50 Hz regions
Saved to your BOM on this device. Partner login to keep it as your order basket and export a PDF.
Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
HyperScan · HS-VX-PTZ32-4MP
4 MP outdoor PTZ. 32x zoom, 150 m infrared, 120 dB WDR, PoE+.
HS-VX-PTZ32-4MP is the 4 megapixel outdoor PTZ for sites that need reach more than they need a second camera. The image is 2688 x 1520. The lens is 4.5–144 mm, 32x optical zoom, with motorized autofocus. Pan is 360 degrees endless, tilt is 180 degrees, and there are 128 presets plus human tracking. Infrared at 850 nm reaches 150 metres or more on PoE+, which is the 32x infrared class without stepping up to a high-PoE midspan. Wide dynamic range is 120 dB and electronic image stabilisation holds the telephoto end when the pole moves. Audio is two-way. Colour needs 0.1 lux; with infrared the scene is 0 lux. It is specified for 50 Hz regions, IP66 and IK10, from -30 °C to 50 °C.
Best for 01
Perimeters
32x from the fence line down to a person at the far corner.
Best for 02
Car parks
One camera over the entrance, the bays and the exit, on presets.
Best for 03
Gate lines
Zoom onto a vehicle, then talk down on the two-way audio.
Best for 04
Windy poles
Electronic stabilisation so the long end of the zoom stays usable.
Illumination
850 nm · 150 m reach
Up to 120 dB
Low light
Colour 0.1 lux at 30 IRE, F1.4
Audio
Two-way, full duplex
Power follows the PoE method printed for this code. The link is Hyperspan structured copper, including XR extended-reach copper where the channel design allows. Recording, 16-channel 4K decode and the published detection set sit on the 36-channel VX NVR. Surveillance storage uses the recorder's two drive bays.
Camera
- Form
- Outdoor PTZ dome
- Tier
- Outdoor
- Resolution
- 4 megapixel, 2688 x 1520, specified for this code
- Day and night
- Specified
- Colour
- White
- Supply
- Camera
Lens
- Focal length
- 4.5–144 mm
- Optical zoom
- 32x
- Focus
- Motorized auto focus
Movement
- Pan
- 360 degrees, endless
- Tilt
- 180 degrees
- Presets
- 128
- Tracking
- Human tracking, specified for this code
Illumination and image
- Minimum illumination
- Colour 0.1 lux at 30 IRE, F1.4. Black and white 0.01 lux, or 0 lux with infrared on.
- Wide dynamic range
- Up to 120 dB, depending on the scene
- Infrared
- 850 nm. Range of reach 150 m or more on PoE+, depending on the scene.
- Stabilisation
- Electronic image stabilisation
- Codec
- H.264, H.265 and Motion JPEG
- Frame rate
- Up to 50 fps on a 50 Hz supply
Audio
- Streaming
- Two-way, full duplex
- Input
- External microphone or line
- Output
- Line
- Encoding
- AAC-LC, G.711, G.726 and Opus
Power and interface
- Power
- PoE+, IEEE 802.3at Type 2 Class 4. Typical 10.5 W, maximum 19 W.
- Supply region
- Specified for 50 Hz regions
- Operating temperature
- -30 °C to 50 °C. Intermittent maximum 55 °C.
- Recorder interface
- ONVIF, RTSP and GB28181 are published on HS-VX-NVR36-STD. The camera profile is confirmed with Technical Support.
Analytics
- On this code
- Human tracking, plus classification of people and vehicles
- With the recorder
- Motion, human and vehicle detection, and area intrusion, on the 36-channel AI NVR.
Mechanical
- Ingress
- IP66, specified for this code. In IEC 60529 that class is dust-tight and protected against powerful water jets.
- Impact
- IK10, specified for this code. In IEC 62262, IK10 is the 20 joule class.
- Housing
- White outdoor housing
- Dimensions
- 217 mm high, 188 mm diameter.
Documentation
- CPR / DoP
- Not applicable. No Declaration of Performance is issued for this hardware.
- Marking
- CE and UKCA where the market of placement requires it. Certificate numbers are not printed on this sheet.
- Warranty
- Manufacturer warranty. See the VX product catalog.
Outline
Body size from the comparable 32x outdoor PTZ.
Confirm before procurement
Confirm firmware and the ONVIF profile with Hyperspan Technical Support before procurement. Whole-site ANPR and multi-camera tracking are a HyperScan design service.
Firmware, the camera ONVIF profile and certified hard-drive brands are confirmed with Hyperspan Technical Support. Whole-site ANPR, recognition and camera coordination are HyperScan design services.
System topology
The path this code takes through HyperScan. It uses the published recorder, storage and copper relationship. It is not a wiring diagram for a specific site.
- 014 MP 32x outdoor PTZPoE+
- 02Hyperspan copperXR extended-reach where the channel allows
- 03PoE edgeSwitch or injector, confirmed at design
- 04VX 36-channel NVR16-channel 4K decode
- 05Surveillance storageTwo bays. Approved 8 TB drive
- 06HyperScan operationViewing, and design-service integrations
