Hyperspan VX™
VX CCTV Hardware
Beyond the Standard. Full Power. No Compromise.
Hyperspan VX™ cameras, NVR and surveillance storage for CCTV and automation — dome, bullet, PTZ and AI box cameras with Standard and Pro options, plus a 36-channel AI recorder.
Why choose Hyperspan
Built for real-world specification
Complete camera set
Dome, bullet, PTZ and AI box form factors for indoor, outdoor and tracking duties.
Standard and Pro
4 MP Standard and 6 MP Pro options with IR, WDR and PoE as specified per model.
AI at the edge
AI box camera and 36-channel NVR with human, vehicle and intrusion analytics.
Works with XR
PoE cameras designed to sit on Hyperspan XR™ extended-reach copper where the channel allows.
Product family
Products in this range
Browse 9 products with dedicated detail pages, technical datasheets. Use Add to BOM on each product page when signed in.
Loading products…
Selection guide
Choosing the right product
Match the coverage duty — lobby, perimeter, tracking or recording — to the correct VX camera, NVR or HDD.
| Project requirement | Recommended product |
|---|---|
| Internal / lobby coverage | HS-VX-DM-STD or HS-VX-DM-PRO |

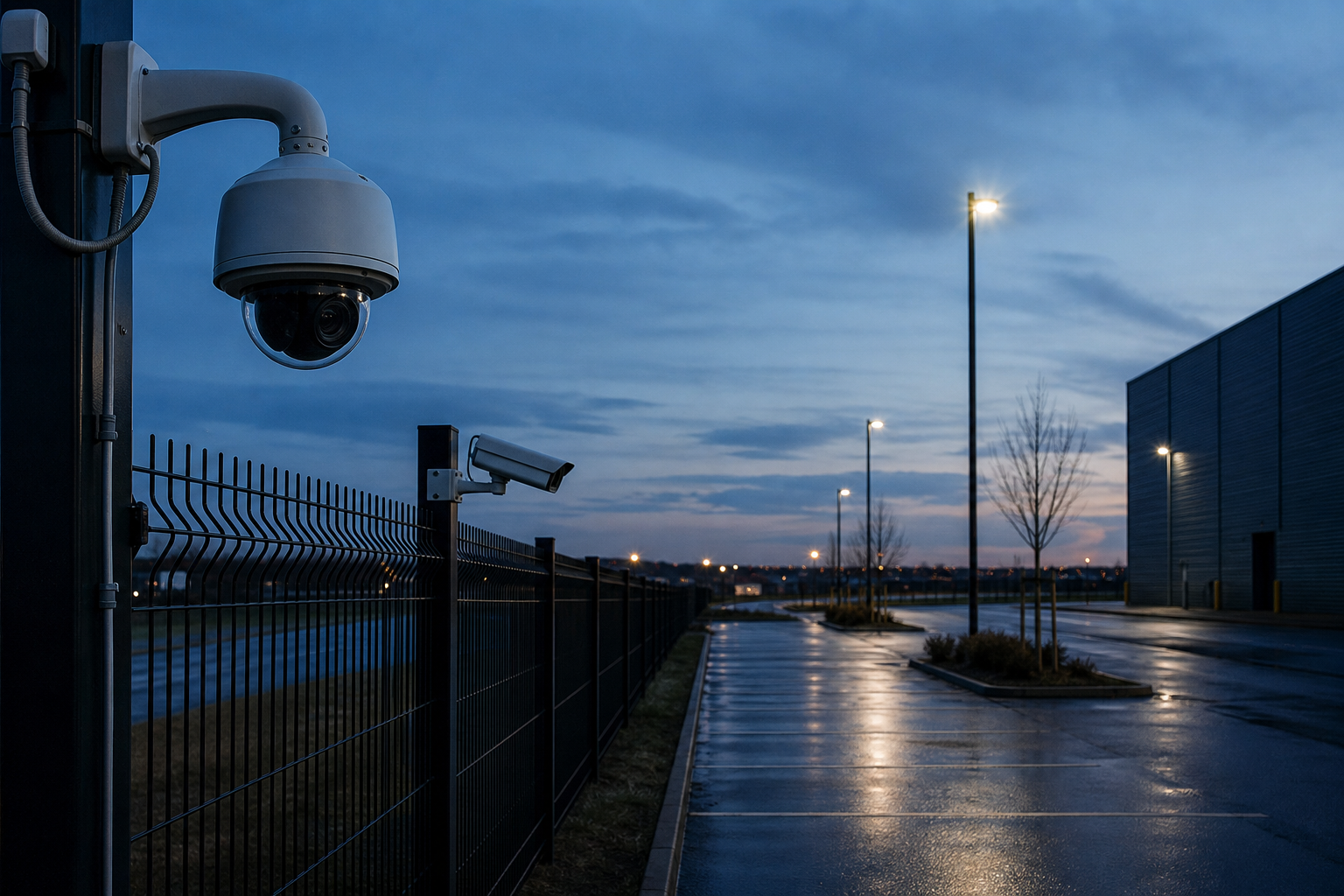

| Perimeter / yard | HS-VX-BL-STD or HS-VX-BL-PRO |
| Wide-area tracking | HS-VX-PTZ25-STD or HS-VX-PTZ30-PRO |
| AI analytics at the camera | HS-VX-AIB-STD |
| Recording & detection | HS-VX-NVR36-STD + HS-ST-8TB-STD |
Ordering guide
SKUs and variants
Confirm final availability and datasheets with Hyperspan Technical Support for live projects.
| Product Code | Description | Type | Category | Format | Construction | Application |
|---|---|---|---|---|---|---|
| HS-VX-DM-STD | VX Standard 4 MP IP Dome | Camera | Dome | Standard | 4 MP · 2.7–13.5mm motorized VF | IP66 / IK10 · IR · Auto-iris |
| HS-VX-DM-PRO | VX Pro 6 MP IP Dome | Camera | Dome | Pro | 6 MP · 2.8–12mm lens | Metal housing · IR · mic & speaker · 120dB WDR |
| HS-VX-BL-STD | VX Standard 4 MP IP Bullet | Camera | Bullet | Standard | 4 MP · 2.7–13.5mm motorized VF | IP66 / IK10 · IR · IP67 on request |
| HS-VX-BL-PRO | VX Pro 6 MP IP Bullet | Camera | Bullet | Pro | 6 MP · 2.8–12mm lens | Metal housing · IR · mic · 120dB WDR |
| HS-VX-PTZ25-STD | VX Standard 4 MP 25x PTZ | Camera | PTZ | Standard | 4 MP · 5.5–137mm (~25x) motorized zoom | IP66 / IK11 · IR |
| HS-VX-PTZ30-PRO | VX Pro 6 MP 30x PTZ | Camera | PTZ | Pro | 6 MP · 4.5–135mm 30x optical zoom | Human tracking · 360° pan · 2-way audio · WDR |
| HS-VX-AIB-STD | VX 4 MP AI Box Camera | Camera | AI Box | Standard | 4 MP · deep-learning AI (1 TOPS) | Lens and mounting bracket included |

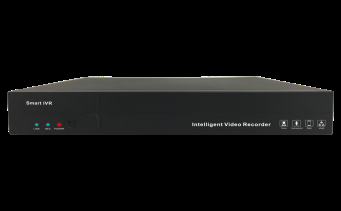

| HS-VX-NVR36-STD | VX 36-channel AI NVR | Recorder | NVR | Standard | 36-channel · 2 HDD bays · 16-ch 4K decode | Motion, human & vehicle detection · area intrusion |
| HS-ST-8TB-STD | 8 TB Surveillance HDD | Storage | HDD | Standard | 8 TB surveillance-grade | Certified / approved brand required |
Range at a glance
Key specifications
- Product Family
- Hyperspan VX™
- Cameras
- Dome · Bullet · PTZ · AI Box
- Tiers
- Standard 4 MP · Pro 6 MP
- Recorder
- 36-channel AI NVR · 2 HDD bays
- Storage
- 8 TB surveillance HDD
- Power
- PoE / external PoE as specified
Technical highlights
Typical applications

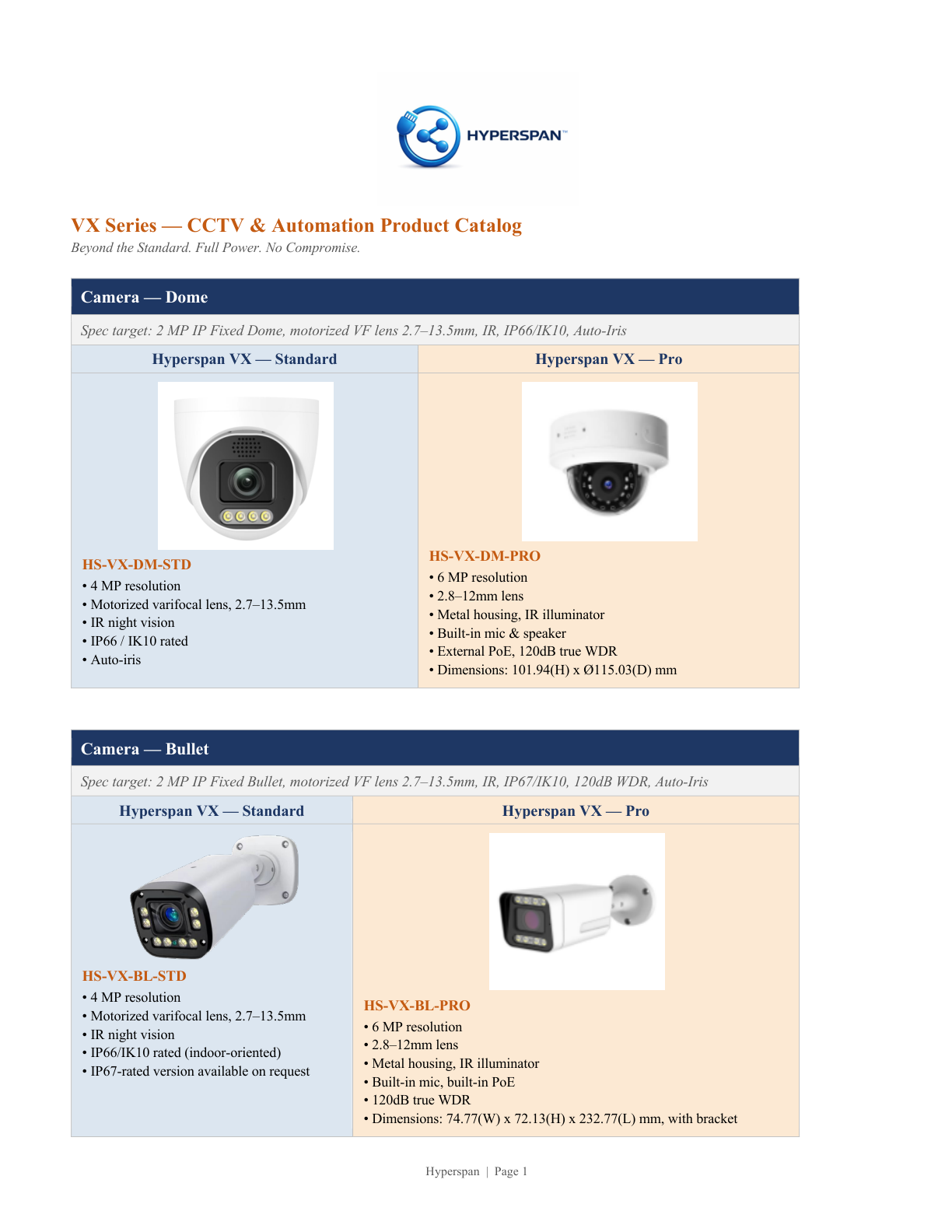

* SKUs and published specifications taken from the Hyperspan VX Product Catalog.
* Confirm current firmware, ONVIF profile and certified HDD brands with Hyperspan Technical Support before procurement.
* HS-ST-8TB-STD photography is not yet in the source catalogue (image coming soon).
* Whole-estate CCTV, BMS, alarm and access design — including partner API integration — is offered as a Hyperspan design service, not as a catalogue SKU.
Design & integration
Next-generation CCTV networks, not cameras in isolation
We help design standalone security systems mapped with CCTV, BMS, intruder alarm, perimeter detection and door access — then integrate the platforms you already have into one harmonised system through a comprehensive partner API service.
- Estate mapping: cameras, recording, alarms, access and building systems on one plan
- VX™ hardware specified against the copper pathway (XR™ or Core™)
- APIs built for the systems you currently run, so operators work in one picture
- Secure AI network design around the security infrastructure, not a separate IT project
Need this range for a live project?
Share your layout, existing security systems and longest runs — we will map VX™ SKUs and, where you need it, the wider CCTV, BMS, alarm and access design.
