Hyperband™
Hyperband™ Fibre Connectors
LC, SC, ST, FC, MTP adapters, couplers and splice protectors
Field and panel fibre connectivity for Hyperband™ — LC and SC connectors (SM/MM), ST and FC simplex, duplex adapters, MTP/MPO adapters, in-line couplers and 40 mm fusion-splice protectors.
Why choose Hyperspan
Built for real-world specification
Complete connector set
The usual LC/SC plus ST/FC for mixed plant.
Adapters & couplers
Panel adapters, MTP keying and in-line couplers for lead extension.
Splice consumables
40 mm protectors in 100-packs.
Product family
Products in this range
Browse 14 products with dedicated detail pages, technical datasheets. Use Add to BOM on each product page when signed in.
Loading products…
Selection guide
Choosing the right product
Match fibre grade, connector, core count and pathway to the Hyperband™ product for the link.
| Project requirement | Recommended product |
|---|---|

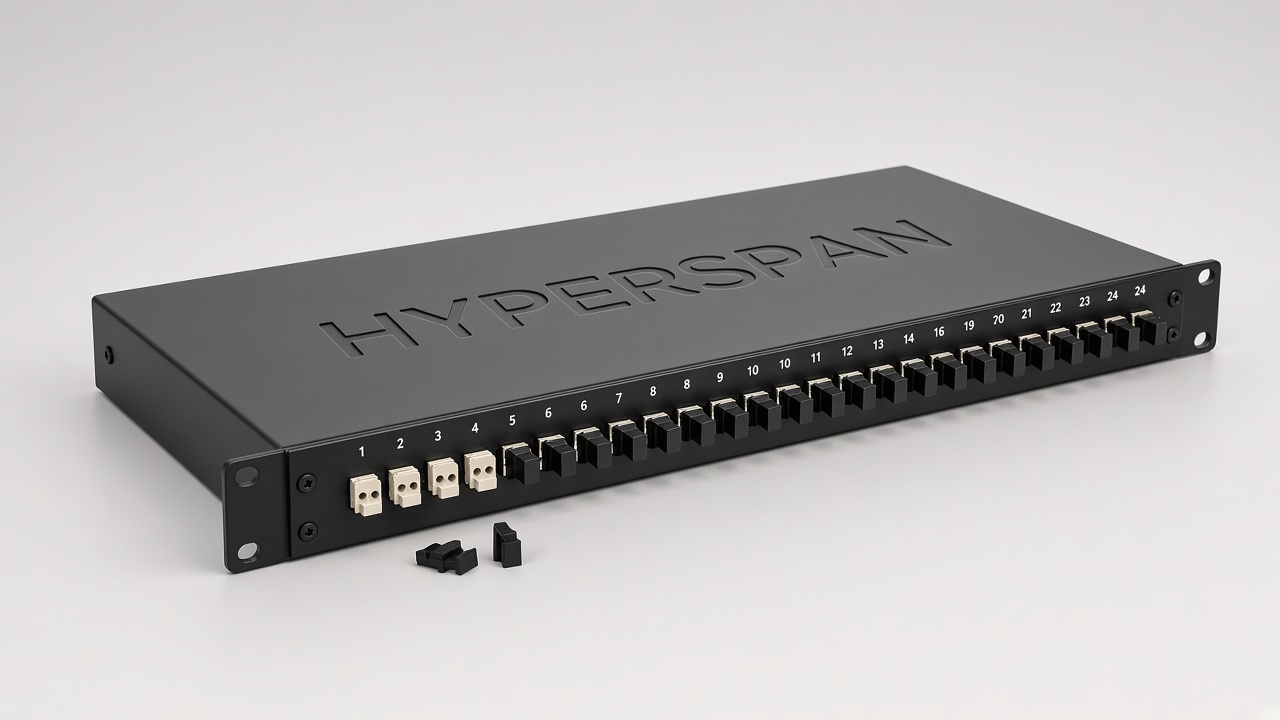

| OS2 LC panel | LC SM connector + LC SM adapter |
| OM4 LC panel | LC MM connector + LC MM adapter |

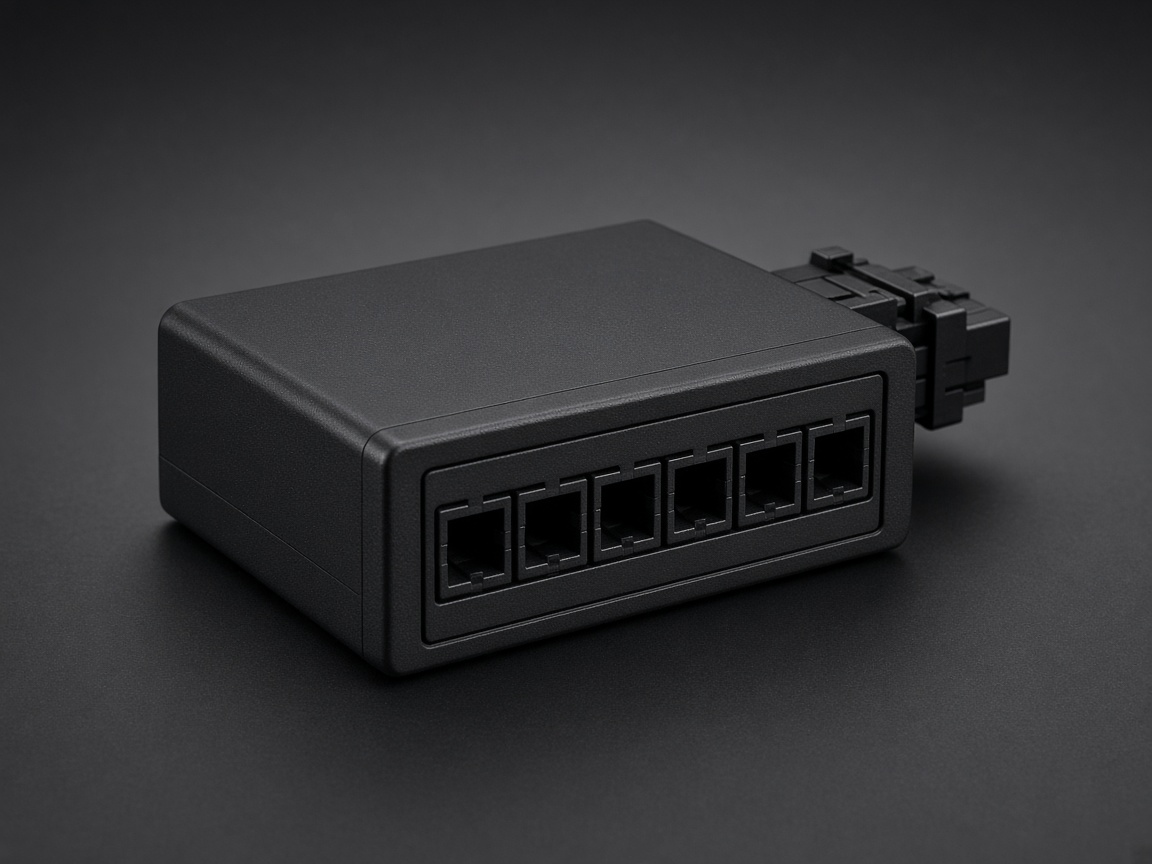

| MTP cassette | MTP/MPO adapter |
| Fusion splice | 40 mm splice protector pack |
Ordering guide
SKUs and variants
Confirm final availability and datasheets with Hyperspan Technical Support for live projects.
| Product Code | Description | Type | Connector | Category | Pack Qty | Colour |
|---|---|---|---|---|---|---|
| HSP-FIB-CON-LC-SM-SX | LC Simplex Connector OS2 | Connector | LC Simplex | OS2 | 1 | Blue |
| HSP-FIB-CON-LC-SM-DX | LC Duplex Connector OS2 | Connector | LC Duplex | OS2 | 1 | Blue |
| HSP-FIB-CON-LC-MM-DX | LC Duplex Connector OM3/OM4 | Connector | LC Duplex | OM3/OM4 | 1 | Aqua |
| HSP-FIB-CON-SC-SM-SX | SC Simplex Connector OS2 | Connector | SC Simplex | OS2 | 1 | Blue |
| HSP-FIB-CON-SC-MM-DX | SC Duplex Connector OM3/OM4 | Connector | SC Duplex | OM3/OM4 | 1 | Beige |
| HSP-FIB-CON-ST-SM-SX | ST Simplex Connector OS2 | Connector | ST Simplex | OS2 | 1 | Metallic |
| HSP-FIB-CON-FC-SM-SX | FC Simplex Connector OS2 | Connector | FC Simplex | OS2 | 1 | Metallic |
| HSP-FIB-ADP-LC-SM | LC Duplex Adapter OS2 | Adapter | LC Duplex | OS2 | 1 | Blue |
| HSP-FIB-ADP-LC-MM | LC Duplex Adapter OM3/OM4 | Adapter | LC Duplex | OM3/OM4 | 1 | Aqua |
| HSP-FIB-ADP-SC-SM | SC Simplex Adapter OS2 | Adapter | SC Simplex | OS2 | 1 | Blue |
| HSP-FIB-ADP-MTP | MTP/MPO Adapter Key-Up/Key-Down | Adapter | MTP/MPO | OM4/OS2 | 1 | Black |
| HSP-FIB-SPL-40 | Fusion Splice Protector 40 mm Pack | Splice protector | — | Universal | 100 | Clear |
| HSP-FIB-CPL-LC | LC Duplex In-Line Coupler | Coupler | LC Duplex | OM3–OS2 | 1 | Blue |
| HSP-FIB-CPL-SC | SC Simplex In-Line Coupler | Coupler | SC Simplex | OM3–OS2 | 1 | Blue |
Range at a glance
Key specifications
- Product Family
- Hyperband™ Connectors
- Connectors
- LC · SC · ST · FC
- Adapters
- LC SM/MM · SC · MTP/MPO
- Couplers
- LC duplex · SC simplex
- Splices
- 40 mm protectors × 100
Technical highlights
Typical applications
Need this range for a live project?
Share your layout, device type and longest runs and we’ll help map the correct SKUs and constructions.
