Hyperband™
Hyperband™ Fibre Panels
Loaded, sliding, MTP cassette and wall-box fibre termination
Expand the Hyperspan Rack™ panel story into optics: 12- and 24-port LC loaded 1U panels in OM3/OM4/OS2, 48-port high-density OS2, SC loaded, sliding unloaded enclosures, MTP/MPO cassettes and 4/8/12-port wall boxes.
Why choose Hyperspan
Built for real-world specification
Loaded LC & SC
Factory-loaded 12/24-port 1U and 48-port HD OS2.
Sliding unloaded
1U and 2U sliding trays for field pigtail / splice builds.
MTP cassettes
12-fibre OM4 and OS2 MTP-to-LC modules for rapid trunks.

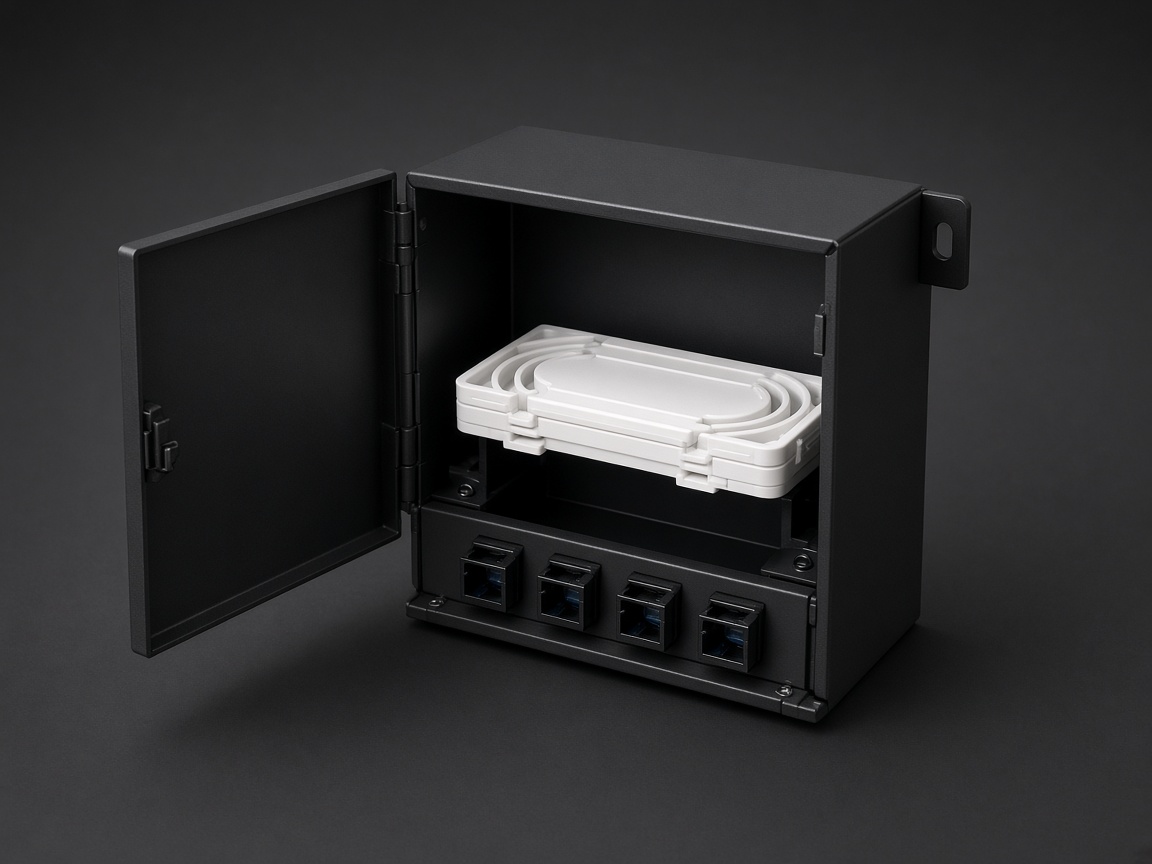

Wall boxes
4, 8 and 12 port for FTTx and small comms spaces.
Product family
Products in this range
Browse 18 products with dedicated detail pages, technical datasheets. Use Add to BOM on each product page when signed in.
Loading products…
Selection guide
Choosing the right product
Match fibre grade, connector, core count and pathway to the Hyperband™ product for the link.
| Project requirement | Recommended product |
|---|---|
| Standard 1U LC patching | 24-port loaded LC in matching fibre grade |
| Maximum LC in 1U | 48-port HD OS2 |
| On-site splicing | Sliding unloaded + pigtail 12-packs |
| Pre-term MPO backbone | MTP cassette + MPO trunk |
| Wall / FTTx | 4/8/12 wall box |
Channel
Ordering guide
SKUs and variants
Confirm final availability and datasheets with Hyperspan Technical Support for live projects.
| Product Code | Description | Category | Format | Ports | Height | Connector |
|---|---|---|---|---|---|---|

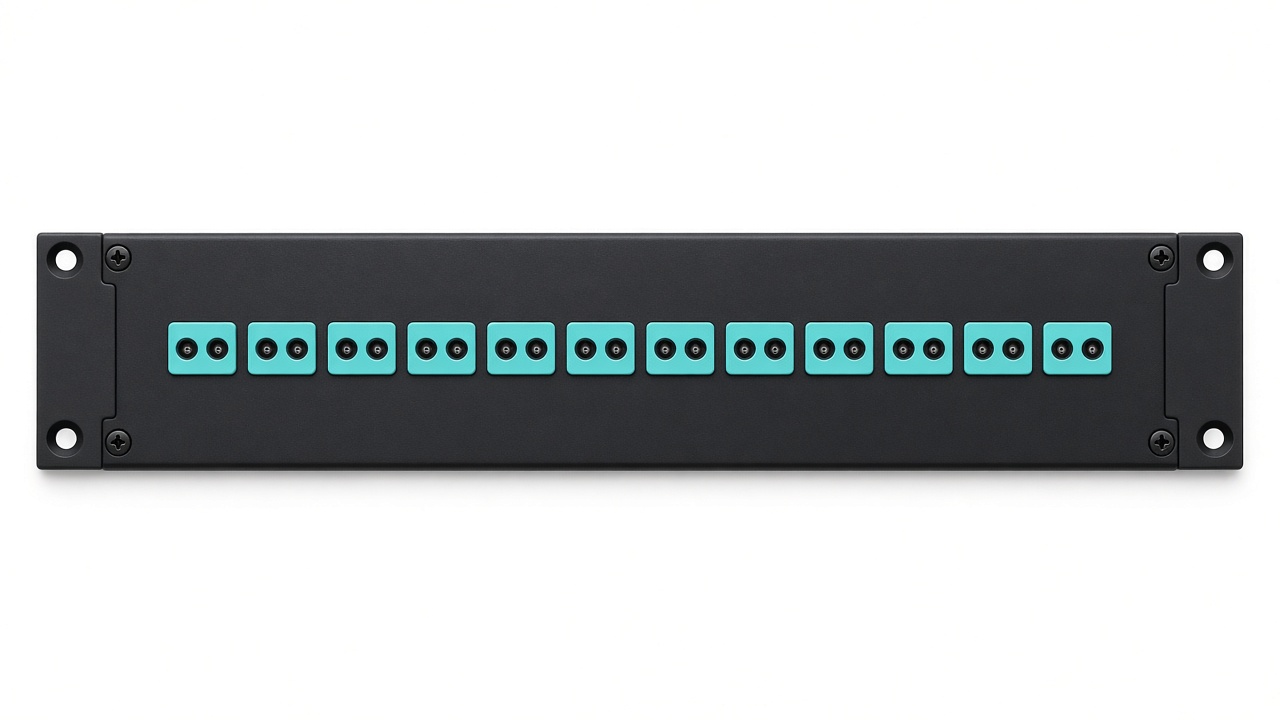

| HSP-FIB-PNL-LC-12-OM3 | 12-Port LC Duplex Loaded Panel OM3 | OM3 | Loaded LC | 12 | 1U | LC Duplex |
| HSP-FIB-PNL-LC-12-OM4 | 12-Port LC Duplex Loaded Panel OM4 | OM4 | Loaded LC | 12 | 1U | LC Duplex |
| HSP-FIB-PNL-LC-12-OS2 | 12-Port LC Duplex Loaded Panel OS2 | OS2 | Loaded LC | 12 | 1U | LC Duplex |
| HSP-FIB-PNL-LC-24-OM3 | 24-Port LC Duplex Loaded Panel OM3 | OM3 | Loaded LC | 24 | 1U | LC Duplex |

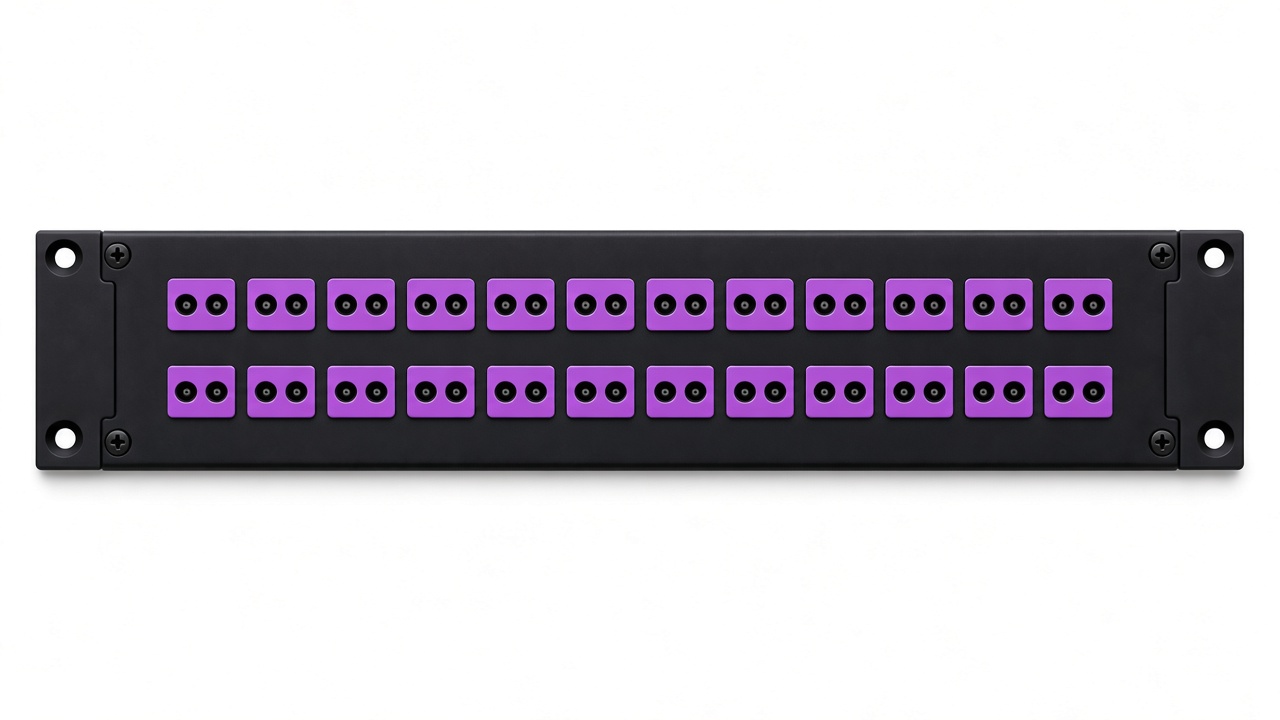

| HSP-FIB-PNL-LC-24-OM4 | 24-Port LC Duplex Loaded Panel OM4 | OM4 | Loaded LC | 24 | 1U | LC Duplex |
| HSP-FIB-PNL-LC-24-OS2 | 24-Port LC Duplex Loaded Panel OS2 | OS2 | Loaded LC | 24 | 1U | LC Duplex |
| HSP-FIB-PNL-LC-48-OS2 | 48-Port LC High-Density Panel OS2 | OS2 | High-density LC | 48 | 1U | LC Duplex |
| HSP-FIB-PNL-SC-24-OS2 | 24-Port SC Simplex Loaded Panel OS2 | OS2 | Loaded SC | 24 | 1U | SC Simplex |
| HSP-FIB-PNL-SLIDE-1U | 1U Sliding Unloaded Fibre Panel | OM3–OS2 | Unloaded sliding | Up to 24 | 1U | Modular |
| HSP-FIB-PNL-SLIDE-2U | 2U Sliding Unloaded Fibre Panel | OM3–OS2 | Unloaded sliding | Up to 48 | 2U | Modular |
| HSP-FIB-PNL-MTP-OM4-12 | MTP/MPO Cassette 12-Fibre OM4 LC | OM4 | MTP cassette | 12 | Modular | MTP to LC |
| HSP-FIB-PNL-MTP-OS2-12 | MTP/MPO Cassette 12-Fibre OS2 LC | OS2 | MTP cassette | 12 | Modular | MTP to LC |
| HSP-FIB-PNL-WALL-4 | Wall-Mount Fibre Box 4 Port Black | OM3–OS2 | Wall box | 4 | Wall | LC/SC |
| HSP-FIB-PNL-WALL-8 | Wall-Mount Fibre Box 8 Port Black | OM3–OS2 | Wall box | 8 | Wall | LC/SC |
| HSP-FIB-PNL-WALL-12 | Wall-Mount Fibre Box 12 Port Black | OM3–OS2 | Wall box | 12 | Wall | LC/SC |
| HSP-FIB-PNL-WALL-4-WHT | Wall-Mount Fibre Box 4 Port White | OM3–OS2 | Wall box | 4 | Wall | LC/SC |
| HSP-FIB-PNL-WALL-8-WHT | Wall-Mount Fibre Box 8 Port White | OM3–OS2 | Wall box | 8 | Wall | LC/SC |
| HSP-FIB-PNL-WALL-12-WHT | Wall-Mount Fibre Box 12 Port White | OM3–OS2 | Wall box | 12 | Wall | LC/SC |
Range at a glance
Key specifications
- Product Family
- Hyperband™ Fibre Panels
- Formats
- Loaded LC/SC · HD · Sliding · MTP cassette · Wall box
- Ports
- 4–48
- Height
- 1U · 2U · wall
- Mounting
- 19-inch Rack™ cabinets
- Copper cousin
- Hyperspan Rack™ copper patch panels
Technical highlights
Typical applications
* Populate unloaded panels with Hyperband™ pigtails or field connectors.
* Copper loaded/unloaded panels remain on the Rack™ Patch Panels page.
Need this range for a live project?
Share your layout, device type and longest runs and we’ll help map the correct SKUs and constructions.
