HSP-PDU-CTRL-V-16C13-4C19-32A-BF

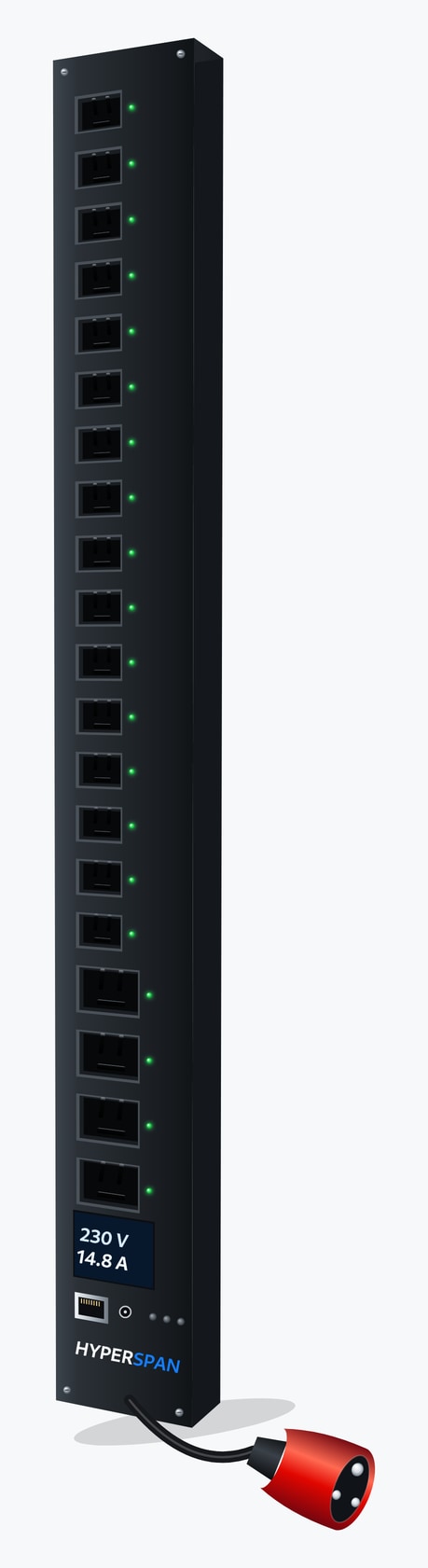

Power™ Control vertical PDU, 16 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, bottom feed, IEC 60309 32 A red commando, 3 m cord 16 × C13 + 4 × C19

Power™ Control vertical PDU, 16 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, bottom feed, IEC 60309 32 A red commando, 3 m cord. Power Control is the intelligent class. Each outlet is metered and can be switched. Feed direction is named on this code. The cord is 3 m. Confirm residual-current protection and a management network drop with the project designer.

Key features

• Power Control intelligent PDU
• Each outlet is metered and can be switched
• Bottom feed
• 16 × C13 + 4 × C19
• Vertical 0U, cabinet side channel
• 3 m factory-fitted cord

Description

Power™ Control vertical PDU, 16 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, bottom feed, IEC 60309 32 A red commando, 3 m cord

Construction

Control

Colour

Black

Application

Intelligent 32 A, shorter bottom feed

Pack qty

1

Type

Control

Ports

16 × C13 + 4 × C19

Format

Vertical 0U, bottom feed

Height

0U

Category

PDU

Product family

POWER

Range

Hyperspan Power™ PDUs

Warranty

Product warranty; 25-Year System Warranty applies to qualifying registered Hyperspan channels

Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
