Hyperspan Power™
Hyperspan Power™ PDUs
Basic bars, monitored Sense strips and per-outlet Control
Hyperspan Power™ covers UK 13A bars and IEC verticals, then two managed classes. Sense is the monitored range: inlet display, network reading and a sensor port, with 16 A or 32 A commando cords in C13 and C13/C19 builds. Control is the intelligent range: per-outlet metering and switching, top or bottom feed, on 32 A verticals. Both are specified for Hyperspan Rack™ cabinets and the Hyper House™.
Why choose Hyperspan
Built for real-world specification
Own-brand Power™
Hyperspan-labelled PDUs specified with the same cabinets, panels and leads as the rest of the rack.

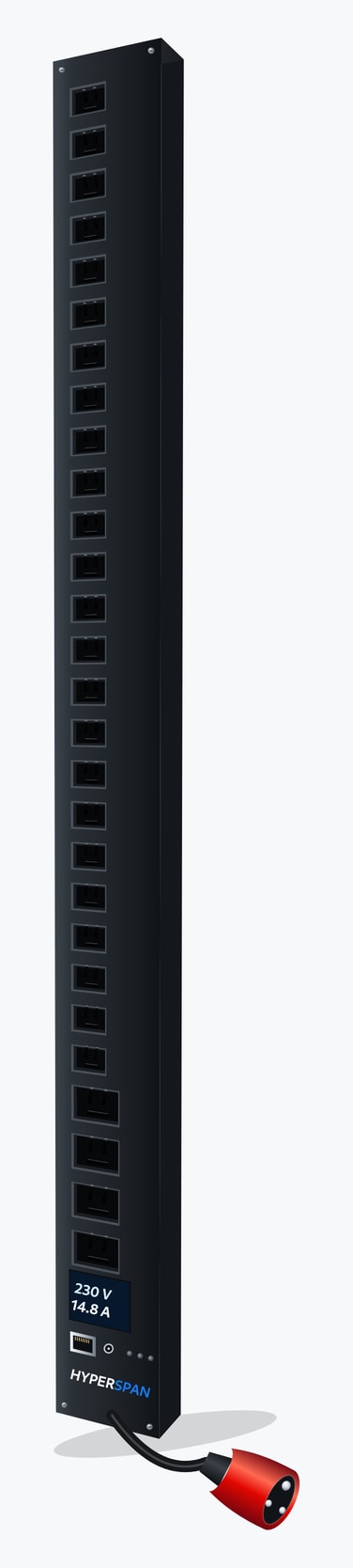

Sense, monitored
Inlet voltage, current, power and energy on the display and over the network. Outlets stay on.

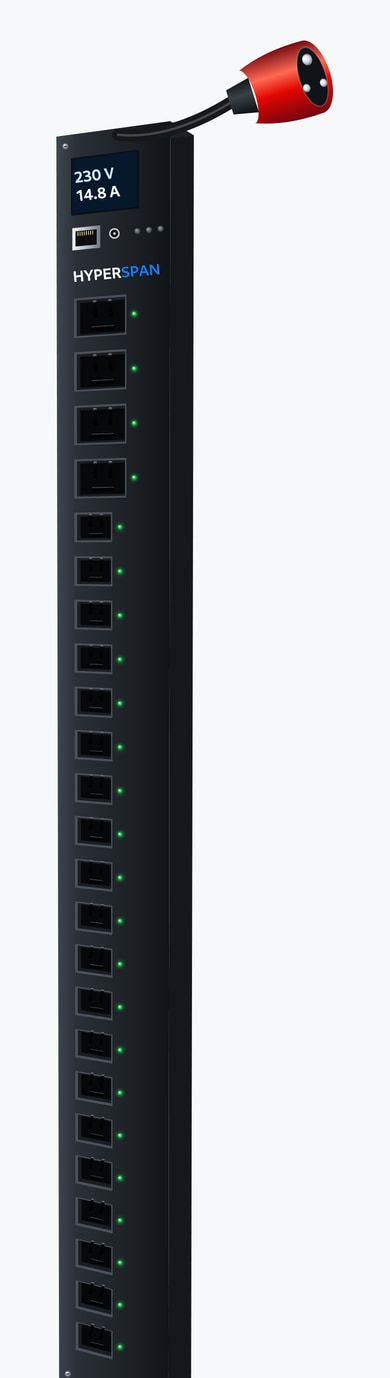

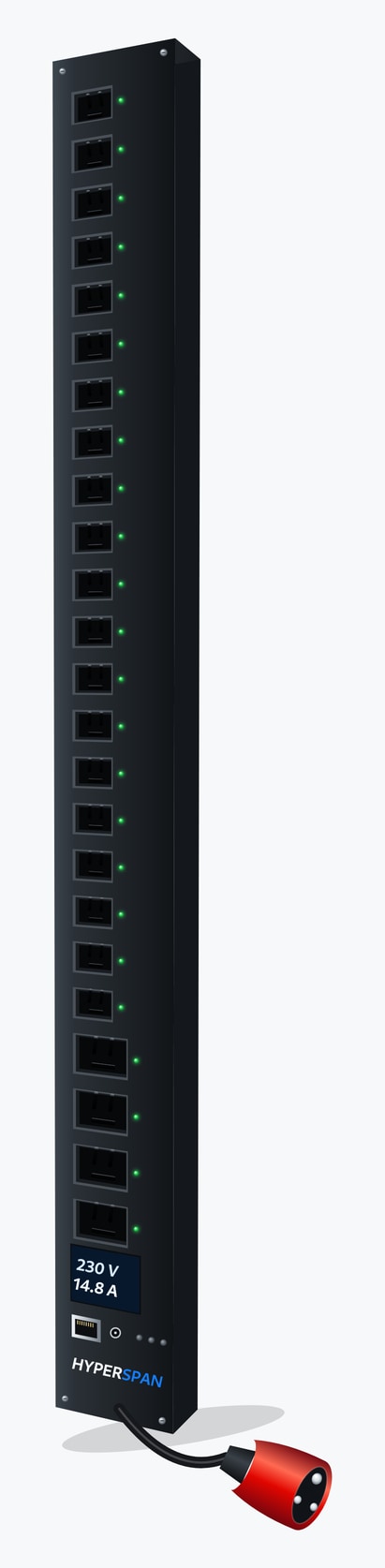

Control, per outlet
Each C13 and C19 is metered and can be switched. Choose top feed or bottom feed.
The outlet matrix
From 12-way compact strips to 36 × C13 + 6 × C19, in 16 A blue and 32 A red commando, on a 3 m cord.
Zero-U fit
Vertical PDUs mount in cabinet side channels without consuming 19-inch U-space.
A+B feeds
Dual-feed intelligent PDU for redundant power paths, alongside the single-feed Control range.
Product family
Products in this range
Browse 32 products with dedicated detail pages, technical datasheets. Use Add to BOM on each product page when signed in.
Loading products…
Selection guide
Choosing the right product
Match footprint, U-count, load and power to the Hyper House™ SKU that fits the room.
| Project requirement | Recommended product |
|---|---|
| UK comms cabinet | 1U 6- or 8-way UK 13A |
| 1U IEC in a shallow rack | 1U 8 × or 12 × C13 16A |
| Zero-U 16A | Vertical 20 × C13 16A |
| Mixed C13/C19 32A | Vertical 24 × C13 + 4 × C19 32A |
| Visibility of load | Sense monitored vertical, 16 A or 32 A |
| Remote reboot | Control, per-outlet switching |
| Cord from the top of the cabinet | Control top feed, 32 A |
| Cord from the bottom of the cabinet | Control bottom feed, 32 A |
| High outlet count | Sense 36 × C13 + 6 × C19, 32 A |
| Three-phase hall | 3-phase 32A vertical |
| A+B redundancy | Dual-feed 32A intelligent |
Ordering guide
SKUs and variants
Confirm final availability and datasheets with Hyperspan Technical Support for live projects.
| Product Code | Description | Type | Format | Ports | Height |
|---|---|---|---|---|---|
| HSP-PDU-UK-1U-6 | Power™ 1U PDU, 6 × BS 1363 UK sockets, 13 A UK plug | Basic | Horizontal | 6 × UK | 1U |
| HSP-PDU-UK-1U-8 | Power™ 1U PDU, 8 × BS 1363 UK sockets, 13 A UK plug | Basic | Horizontal | 8 × UK | 1U |
| HSP-PDU-C13-1U-8-16A | Power™ 1U PDU, 8 × IEC C13 sockets, IEC 60309 16 A blue commando inlet | Basic | Horizontal | 8 × C13 | 1U |
| HSP-PDU-C13-1U-12-16A | Power™ 1U PDU, 12 × IEC C13 sockets, IEC 60309 16 A blue commando inlet | Basic | Horizontal | 12 × C13 | 1U |
| HSP-PDU-V-C13-20-16A | Power™ Vertical PDU, 20 × IEC C13 sockets, IEC 60309 16 A blue commando inlet | Basic | Vertical 0U | 20 × C13 | 0U |
| HSP-PDU-V-24C13-4C19-32A | Power™ Vertical PDU, 24 × IEC C13 and 4 × IEC C19 sockets, IEC 60309 32 A red commando inlet | Basic | Vertical 0U | 24 × C13 + 4 × C19 | 0U |
| HSP-PDU-M-V-C13-20-16A | Power™ Metered vertical PDU, 20 × IEC C13 sockets, local display, IEC 60309 16 A blue commando inlet | Metered | Vertical 0U | 20 × C13 | 0U |
| HSP-PDU-S-V-C13-20-16A | Power™ Switched vertical PDU, 20 × IEC C13 sockets, network outlet control, IEC 60309 16 A blue commando inlet | Switched | Vertical 0U | 20 × C13 | 0U |
| HSP-PDU-INT-V-24-32A | Power™ Intelligent vertical PDU, 20 × IEC C13 and 4 × IEC C19 sockets, networked metering and switching, IEC 60309 32 A red commando inlet | Intelligent | Vertical 0U | 20 × C13 + 4 × C19 | 0U |
| HSP-PDU-3P-V-32A | Power™ 3-phase vertical PDU, 24 × IEC C13 and 6 × IEC C19 sockets, IEC 60309 32 A five-pin red commando inlet | Intelligent | Vertical 0U | 24 × C13 + 6 × C19 | 0U |
| HSP-PDU-DSK-UK-4 | Power™ Desktop PDU, 4 × BS 1363 UK sockets, 13 A UK plug | Basic | Desktop | 4 × UK | Desktop |
| HSP-PDU-DUAL-32A | Power™ Dual-feed vertical PDU, 24 × IEC C13 and 4 × IEC C19 sockets, two IEC 60309 32 A red commando inlets | Intelligent | Vertical 0U | 24 × C13 + 4 × C19 | 0U |
| HSP-PDU-M-1U-C13-8-16A | Power™ Metered 1U PDU, 8 × IEC C13 sockets, local display, IEC 60309 16 A blue commando inlet | Metered | Horizontal | 8 × C13 | 1U |
| HSP-PDU-S-1U-C13-8-16A | Power™ Switched 1U PDU, 8 × IEC C13 sockets, network outlet control, IEC 60309 16 A blue commando inlet | Switched | Horizontal | 8 × C13 | 1U |
| HSP-PDU-INT-1U-C13-8-16A | Power™ Intelligent 1U PDU, 8 × IEC C13 sockets, networked metering and switching, IEC 60309 16 A blue commando inlet | Intelligent | Horizontal | 8 × C13 | 1U |
| HSP-PDU-M-UK-1U-8 | Power™ Metered 1U PDU, 8 × BS 1363 UK sockets, local display, 13 A UK plug | Metered | Horizontal | 8 × UK | 1U |
| HSP-PDU-INT-V-C13-16-16A | Power™ Intelligent vertical PDU, 16 × IEC C13 sockets, networked metering and switching, IEC 60309 16 A blue commando inlet | Intelligent | Vertical 0U | 16 × C13 | 0U |
| HSP-PDU-INT-V-C13-24-16A | Power™ Intelligent vertical PDU, 24 × IEC C13 sockets, networked metering and switching, IEC 60309 16 A blue commando inlet | Intelligent | Vertical 0U | 24 × C13 | 0U |
| HSP-PDU-S-V-24C13-4C19-32A | Power™ Switched vertical PDU, 24 × IEC C13 and 4 × IEC C19 sockets, network outlet control, IEC 60309 32 A red commando inlet | Switched | Vertical 0U | 24 × C13 + 4 × C19 | 0U |
| HSP-PDU-M-3P-V-32A | Power™ Metered 3-phase vertical PDU, 24 × IEC C13 and 6 × IEC C19 sockets, local display, IEC 60309 32 A five-pin red commando inlet | Metered | Vertical 0U | 24 × C13 + 6 × C19 | 0U |
| HSP-PDU-SENSE-V-24C13-4C19-32A | Power™ Sense vertical PDU, 24 × IEC C13 and 4 × IEC C19 locking outlets, inlet display, IEC 60309 32 A red commando, 3 m cord | Sense | Vertical 0U | 24 × C13 + 4 × C19 | 0U |
| HSP-PDU-SENSE-V-24C13-4C19-16A | Power™ Sense vertical PDU, 24 × IEC C13 and 4 × IEC C19 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord | Sense | Vertical 0U | 24 × C13 + 4 × C19 | 0U |
| HSP-PDU-SENSE-V-16C13-2C19-16A | Power™ Sense vertical PDU, 16 × IEC C13 and 2 × IEC C19 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord | Sense | Vertical 0U | 16 × C13 + 2 × C19 | 0U |
| HSP-PDU-SENSE-V-16C13-16A | Power™ Sense vertical PDU, 16 × IEC C13 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord | Sense | Vertical 0U | 16 × C13 | 0U |
| HSP-PDU-SENSE-V-12C13-2C19-32A | Power™ Sense vertical PDU, 12 × IEC C13 and 2 × IEC C19 locking outlets, inlet display, IEC 60309 32 A red commando, 3 m cord | Sense | Vertical 0U | 12 × C13 + 2 × C19 | 0U |
| HSP-PDU-SENSE-V-12C13-2C19-16A | Power™ Sense vertical PDU, 12 × IEC C13 and 2 × IEC C19 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord | Sense | Vertical 0U | 12 × C13 + 2 × C19 | 0U |
| HSP-PDU-SENSE-V-36C13-6C19-32A | Power™ Sense vertical PDU, 36 × IEC C13 and 6 × IEC C19 locking outlets, inlet display, IEC 60309 32 A red commando, 3 m cord | Sense | Vertical 0U | 36 × C13 + 6 × C19 | 0U |
| HSP-PDU-CTRL-V-24C13-8C19-32A-BF | Power™ Control vertical PDU, 24 × IEC C13 and 8 × IEC C19 locking outlets, per-outlet metering and switching, bottom feed, IEC 60309 32 A red commando, 3 m cord | Control | Vertical 0U, bottom feed | 24 × C13 + 8 × C19 | 0U |
| HSP-PDU-CTRL-V-20C13-4C19-32A-TF | Power™ Control vertical PDU, 20 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, top feed, IEC 60309 32 A red commando, 3 m cord | Control | Vertical 0U, top feed | 20 × C13 + 4 × C19 | 0U |
| HSP-PDU-CTRL-V-20C13-4C19-32A-BF | Power™ Control vertical PDU, 20 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, bottom feed, IEC 60309 32 A red commando, 3 m cord | Control | Vertical 0U, bottom feed | 20 × C13 + 4 × C19 | 0U |
| HSP-PDU-CTRL-V-16C13-4C19-32A-BF | Power™ Control vertical PDU, 16 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, bottom feed, IEC 60309 32 A red commando, 3 m cord | Control | Vertical 0U, bottom feed | 16 × C13 + 4 × C19 | 0U |
| HSP-PDU-CTRL-V-12C13-4C19-32A-TF | Power™ Control vertical PDU, 12 × IEC C13 and 4 × IEC C19 locking outlets, per-outlet metering and switching, top feed, IEC 60309 32 A red commando, 3 m cord | Control | Vertical 0U, top feed | 12 × C13 + 4 × C19 | 0U |
Range at a glance
Key specifications
- Product Family
- Hyperspan Power™
- Inlets
- BS 1363 UK plug · IEC 60309 16 A blue commando · IEC 60309 32 A red commando · five-pin 3-phase
- Outlets
- UK · C13 · C19
- Mounting
- 1U horizontal · 0U vertical · desktop
- Intelligence
- Basic · Metered · Switched · Sense · Control · Intelligent
- Cabinets
- Fits Hyperspan Rack™ 42U–52U frames
Technical highlights
Typical applications
* Each PDU photo is matched to that SKU: UK plugs only on BS 1363 units, blue IEC 60309 on 16 A C13 units, red IEC 60309 on 32 A units.
* Confirm inlet plug, residual-current protection and hall electrics with the project electrical designer.
* Intelligent PDUs require a management network drop. Specify that separately.
* Certificates of Conformity (LVD / EMC / RoHS) are generated per SKU. CPR DoP is not applicable to PDUs.
Need this range for a live project?
Share your layout, device type and longest runs and we’ll help map the correct SKUs and constructions.
