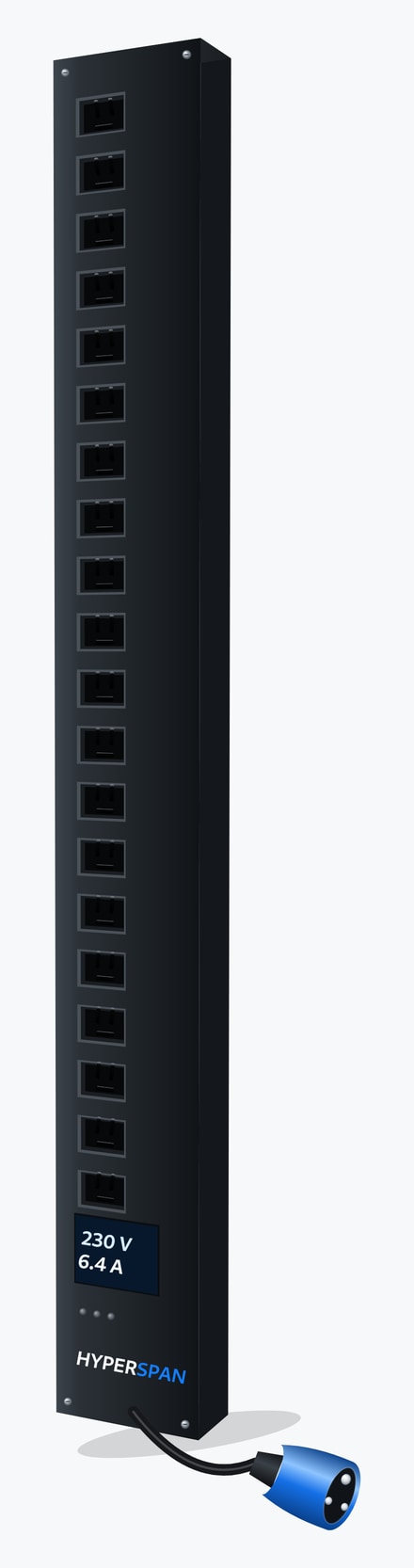

Product photography is Hyperspan Rack™ / Power™ studio imagery matched to this cabinet, PDU or accessory family.
HSP-PDU-M-V-C13-20-16A
Power™ Metered vertical PDU, 20 × IEC C13 sockets, local display, IEC 60309 16 A blue commando inlet 20 × C13
Power™ Metered vertical PDU, 20 × IEC C13 sockets, local display, IEC 60309 16 A blue commando inlet. Hyperspan Power™ rack PDU for Hyperspan Rack™ cabinets. The inlet and outlets named above are the ones fitted to this SKU. Confirm residual-current protection and hall electrics with the project electrical designer. Certificate of Conformity is available for this SKU.
Key features
- Metered PDU
- 20 × C13
- Vertical 0U, cabinet side channel
- Local current display
- Specified for Hyperspan Rack cabinets
- Description
- Power™ Metered vertical PDU, 20 × IEC C13 sockets, local display, IEC 60309 16 A blue commando inlet
- Construction
- Metered
- Colour
- Black
- Application
- Local current display
- Pack qty
- 1
- Type
- Metered
- Ports
- 20 × C13
- Format
- Vertical 0U
- Height
- 0U
- Category
- PDU
- Product family
- POWER
- Range
- Hyperspan Power™ PDUs
- Warranty
- Product warranty; 25-Year System Warranty applies to qualifying registered Hyperspan channels
Saved to your BOM on this device. Partner login to keep it as your order basket and export a PDF.
Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
