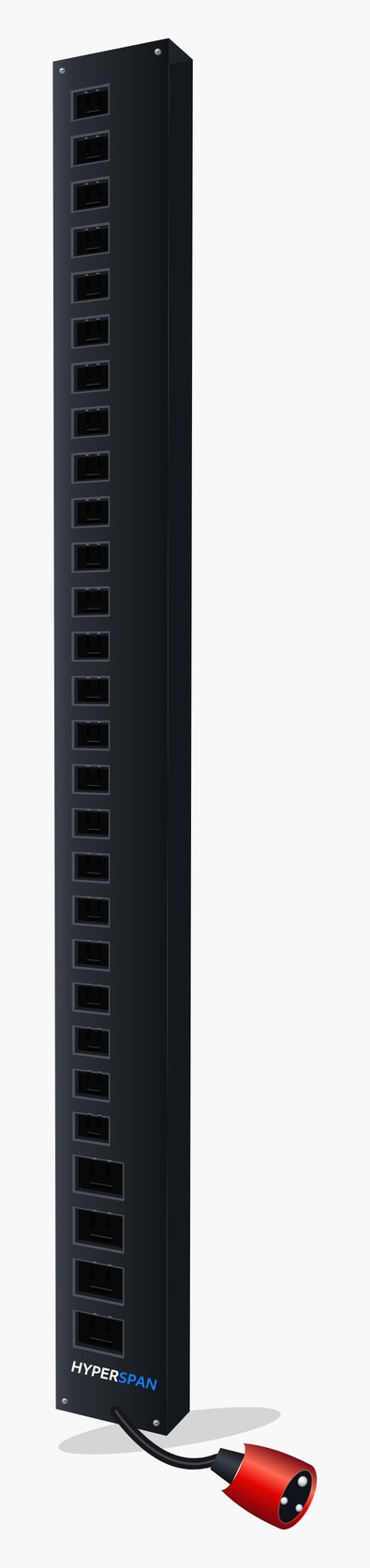

Product photography is Hyperspan Rack™ / Power™ studio imagery matched to this cabinet, PDU or accessory family.
HSP-PDU-V-24C13-4C19-32A
Power™ Vertical PDU, 24 × IEC C13 and 4 × IEC C19 sockets, IEC 60309 32 A red commando inlet 24 × C13 + 4 × C19
Power™ Vertical PDU, 24 × IEC C13 and 4 × IEC C19 sockets, IEC 60309 32 A red commando inlet. Hyperspan Power™ rack PDU for Hyperspan Rack™ cabinets. The inlet and outlets named above are the ones fitted to this SKU. Confirm residual-current protection and hall electrics with the project electrical designer. Certificate of Conformity is available for this SKU.
Key features
- Basic PDU
- 24 × C13 + 4 × C19
- Vertical 0U, cabinet side channel
- Mixed C13/C19 loads
- Specified for Hyperspan Rack cabinets
- Description
- Power™ Vertical PDU, 24 × IEC C13 and 4 × IEC C19 sockets, IEC 60309 32 A red commando inlet
- Construction
- Basic
- Colour
- Black
- Application
- Mixed C13/C19 loads
- Pack qty
- 1
- Type
- Basic
- Ports
- 24 × C13 + 4 × C19
- Format
- Vertical 0U
- Height
- 0U
- Category
- PDU
- Product family
- POWER
- Range
- Hyperspan Power™ PDUs
- Warranty
- Product warranty; 25-Year System Warranty applies to qualifying registered Hyperspan channels
Saved to your BOM on this device. Partner login to keep it as your order basket and export a PDF.
Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
