Product photography is Hyperspan Rack™ / Power™ studio imagery matched to this cabinet, PDU or accessory family.
HSP-PDU-SENSE-V-16C13-2C19-16A

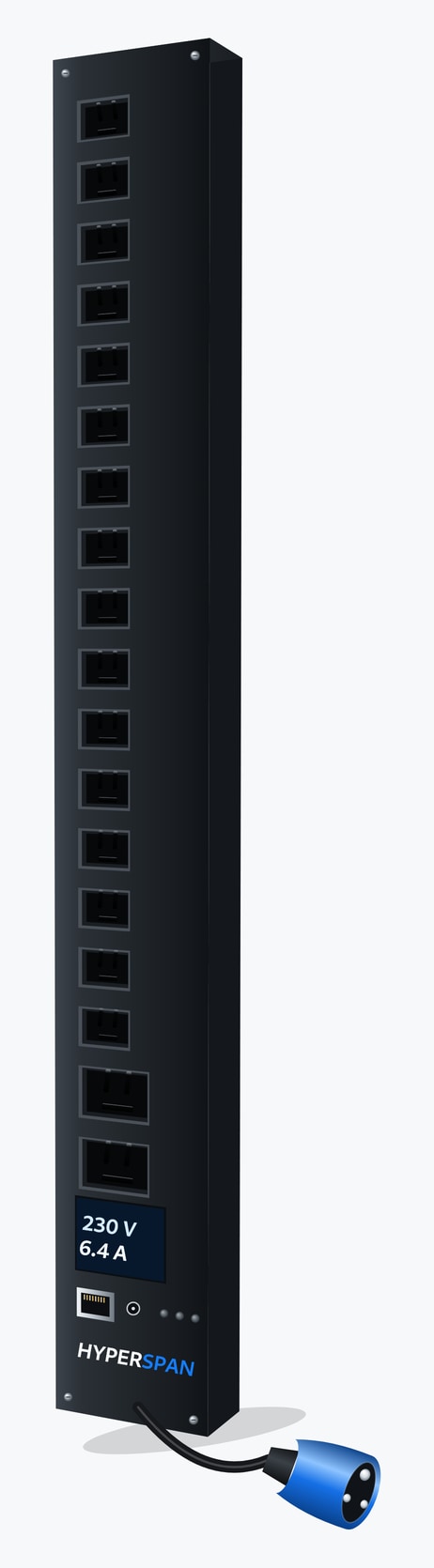

Power™ Sense vertical PDU, 16 × IEC C13 and 2 × IEC C19 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord 16 × C13 + 2 × C19
Power™ Sense vertical PDU, 16 × IEC C13 and 2 × IEC C19 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord. Power Sense is the monitored class. The display and the network both read the inlet. Individual outlets are not switched. The cord on this code is 3 m. Confirm residual-current protection and the distribution board with the project electrical designer.
Key features
- Power Sense monitored PDU
- Inlet metering on the display and over the network
- Outlets stay on
- 16 × C13 + 2 × C19
- Vertical 0U, cabinet side channel
- 3 m factory-fitted cord
- Description
- Power™ Sense vertical PDU, 16 × IEC C13 and 2 × IEC C19 locking outlets, inlet display, IEC 60309 16 A blue commando, 3 m cord
- Construction
- Sense
- Colour
- Black
- Application
- Monitored 16 A, shorter strip
- Pack qty
- 1
- Type
- Sense
- Ports
- 16 × C13 + 2 × C19
- Format
- Vertical 0U
- Height
- 0U
- Category
- PDU
- Product family
- POWER
- Range
- Hyperspan Power™ PDUs
- Warranty
- Product warranty; 25-Year System Warranty applies to qualifying registered Hyperspan channels
