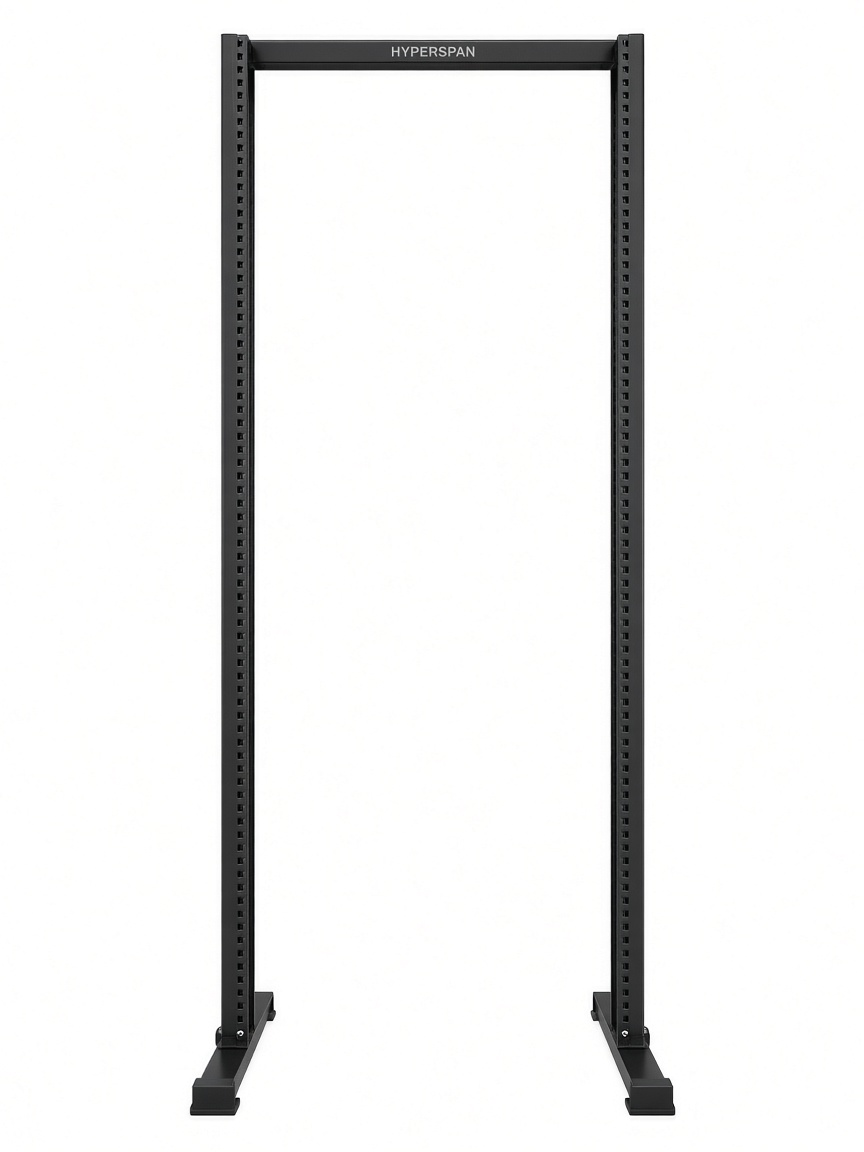

HSP-RACK-OF-2P-42U
Open Frame 2-Post 42U
HSP-RACK-OF-2P-42U is a 42U Hyperspan Rack open frame. It is a 2-post frame. There are no doors or side panels. 19-inch EIA-310 rails, numbered in U, carry the equipment. It is supplied flat-packed for assembly on site. Typical use: MDF / telecom frames. Anchor the frame to the floor before it is loaded.
Key features
- 42U of 19-inch mounting
- 2-post open frame
- Numbered EIA-310 rails
- Black powder-coated steel
- Supplied flat-packed for site assembly
Technical data
- Product code
- HSP-RACK-OF-2P-42U
- Cabinet
- Open frame
- Rack units
- 42U
- Frame
- 2-post
- Mounting
- 19-inch EIA-310
- Rails
- One pair, numbered in U
- Material
- Steel
- Finish
- Black powder coat
- Supply
- Flat-packed
- Application
- MDF / telecom frames
- Warranty
- Product warranty; 25-Year System Warranty applies to qualifying registered Hyperspan channels
Saved to your BOM on this device. Partner login to keep it as your order basket and export a PDF.
Documents are generated in the same branded PDF style as other Hyperspan downloads. Confirm certified DoP / CoC revisions with Hyperspan Technical Support for live projects and regulatory submission.
Flat-pack build
How this cabinet goes together
It is supplied flat-packed for assembly on site. The numbered drawing matches the parts in the pack and the assembly manual.
Parts
- 1BaseFloor member. Anchor this before the frame is loaded.
- 2Upright postsThe two posts of the frame.
- 3Top tieJoins the posts and squares the frame.
- 419-inch railsOne EIA-310 pair on the posts.
Build sequence
- 1.Unpack and check the base (1), posts (2), top tie (3) and rails (4).
- 2.Fix the posts to the base.
- 3.Fit the top tie and square the frame before you tighten it.
- 4.Fit the 19-inch rails.
- 5.Anchor the frame to the floor, then load the equipment. This frame has no doors or side panels.
Before you start
- Use two people. A tall cabinet or frame is not a one-person lift.
- Wear gloves. Flat-pack steel edges are sharp.
- Assemble on a level floor, with room to square the frame.
- Leave the frame fixings finger-tight until the diagonals match, then tighten.
- Do not load equipment until the rails are fitted and the cabinet is in its final position.
- A published static load is a standing load. Do not roll a loaded cabinet.
- Bond the frame to earth before any PDU or active equipment is energised. The earth bonding kit is a separate accessory.
- Baying kits, plinths, castors, fan trays, blanking panels and M6 cage nuts are ordered separately.
