HYPERBAND™ FIBRE PATCH LEADS — ORDERING GUIDE
LC, SC and MPO patch cords by grade and length

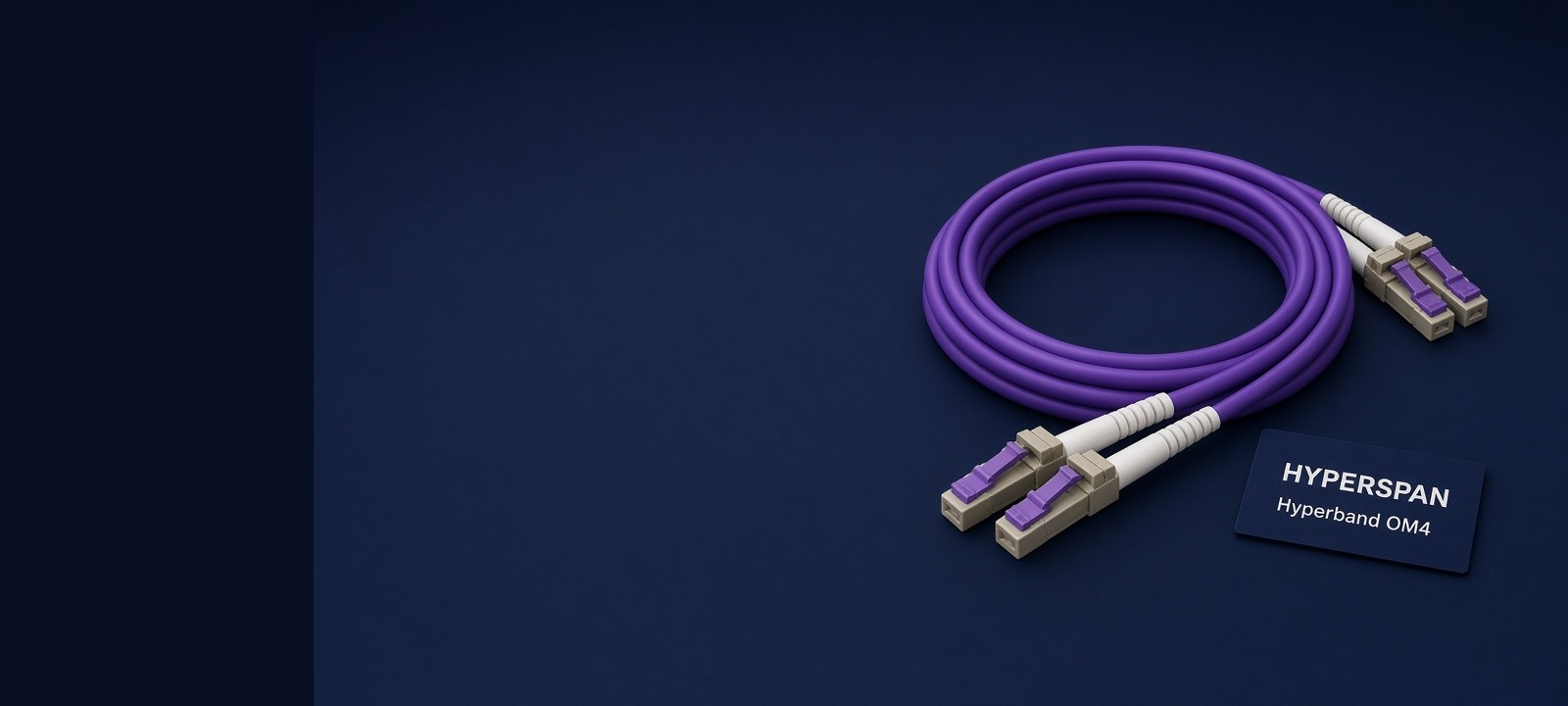

Hyperband™ fibre patch leads in OM3 aqua, OM4 Erika violet and OS2 yellow — LC-LC duplex in 1–20 m, LC-SC and SC-SC cross-connects, plus MPO/MTP 12-fibre trunks for cassette systems. LSZH jackets with Dca reaction-to-fire for internal use.
LC-LC duplex
Stock lengths 1, 2, 3, 5, 10 m (OS2 also 15 / 20 m).
Mixed connectors
LC-SC and SC-SC 2 m cross-connects.
MPO/MTP trunks
12-fibre 5 m trunks for cassette backbone.
Complete Product Ordering Guide
| Product code | Description | Category | Connector | Length | Colour |
|---|---|---|---|---|---|
| HSP-FIB-PL-OM3-LCLC-1M | OM3 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM3 | LC-LC Duplex | 1m | Aqua |
| HSP-FIB-PL-OM4-LCLC-1M | OM4 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | LC-LC Duplex | 1m | Erika Violet |
| HSP-FIB-PL-OS2-LCLC-1M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 1m | Yellow |
| HSP-FIB-PL-OM3-LCLC-2M | OM3 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM3 | LC-LC Duplex | 2m | Aqua |
| HSP-FIB-PL-OM4-LCLC-2M | OM4 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | LC-LC Duplex | 2m | Erika Violet |
| HSP-FIB-PL-OS2-LCLC-2M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 2m | Yellow |
| HSP-FIB-PL-OM3-LCLC-3M | OM3 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM3 | LC-LC Duplex | 3m | Aqua |
| HSP-FIB-PL-OM4-LCLC-3M | OM4 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | LC-LC Duplex | 3m | Erika Violet |
| HSP-FIB-PL-OS2-LCLC-3M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 3m | Yellow |
| HSP-FIB-PL-OM3-LCLC-5M | OM3 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM3 | LC-LC Duplex | 5m | Aqua |
| HSP-FIB-PL-OM4-LCLC-5M | OM4 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | LC-LC Duplex | 5m | Erika Violet |
| HSP-FIB-PL-OS2-LCLC-5M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 5m | Yellow |
| HSP-FIB-PL-OM3-LCLC-10M | OM3 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM3 | LC-LC Duplex | 10m | Aqua |
| HSP-FIB-PL-OM4-LCLC-10M | OM4 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | LC-LC Duplex | 10m | Erika Violet |
| HSP-FIB-PL-OS2-LCLC-10M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 10m | Yellow |
| HSP-FIB-PL-OS2-LCLC-15M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 15m | Yellow |
| HSP-FIB-PL-OS2-LCLC-20M | OS2 LC-LC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-LC Duplex | 20m | Yellow |
| HSP-FIB-PL-OM3-LCSC-2M | OM3 LC-SC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM3 | LC-SC Duplex | 2m | Aqua |
| HSP-FIB-PL-OM4-LCSC-2M | OM4 LC-SC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | LC-SC Duplex | 2m | Erika Violet |
| HSP-FIB-PL-OS2-LCSC-2M | OS2 LC-SC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | LC-SC Duplex | 2m | Yellow |
| HSP-FIB-PL-OM4-SCSC-2M | OM4 SC-SC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OM4 | SC-SC Duplex | 2m | Erika Violet |
| HSP-FIB-PL-OS2-SCSC-2M | OS2 SC-SC Duplex Fibre Patch Lead — part of Hyperband™ Fibre Patch Leads. | OS2 | SC-SC Duplex | 2m | Yellow |
| HSP-FIB-PL-OM4-MPO12-5M | OM4 MPO/MTP 12-Fibre Trunk 5m — part of Hyperband™ Fibre Patch Leads. | OM4 | MPO/MTP 12f | 5m | Erika Violet |
| HSP-FIB-PL-OS2-MPO12-5M | OS2 MPO/MTP 12-Fibre Trunk 5m — part of Hyperband™ Fibre Patch Leads. | OS2 | MPO/MTP 12f | 5m | Yellow |
CPR Euroclass with smoke, droplets and acidity shown where declared. External PE constructions typically declare Fca with NPD additional classes.
Product selection guide
Multimode LAN / SAN short reach
OM3 or OM4 LC-LC
10/40G multimode
OM4 LC-LC or MPO trunk
Singlemode campus / CWDM
OS2 LC-LC yellow
Panel to SC plant
LC-SC 2 m
High-density cassette
MPO/MTP 12f trunk + cassette
Technical specifications
- OM3
- OM4
- OS2
- LC Duplex
- MPO/MTP
- LSZH
- Dca
- Factory Tested
Range at a glance
- Product Family
- Hyperband™
- Fibre
- OM3 · OM4 · OS2
- Connectors
- LC · SC · MPO/MTP
- Jacket
- LSZH
- CPR
- Dca-s1a,d1,a1
- Lengths
- 1–20 m stock
